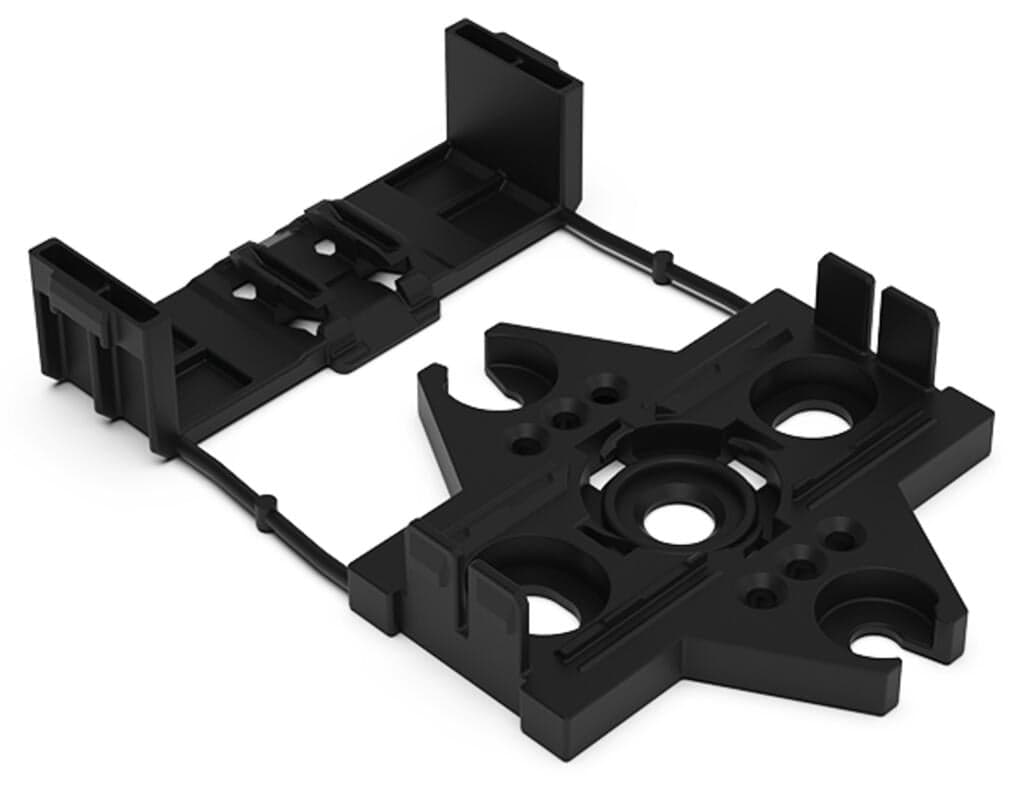

Product Model
770-310
Key Features
- 1Secure and reliable connections for electrical installations.
- 2Suitable for flying leads with 2- to 5-pole configurations.
- 3Made from durable polyamide (PA66) insulation material.
- 4Operating temperature range: -35°C to +85°C.
- 5Compatible with WAGO's WINSTA MIDI series for efficient conductivity and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for flying leads; 2- to 5-pole | Note (material data) | Information on material specifications can be found here |
| Color | black | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.239MJ |
| Weight | 8g | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4066966112085 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
