Product Model

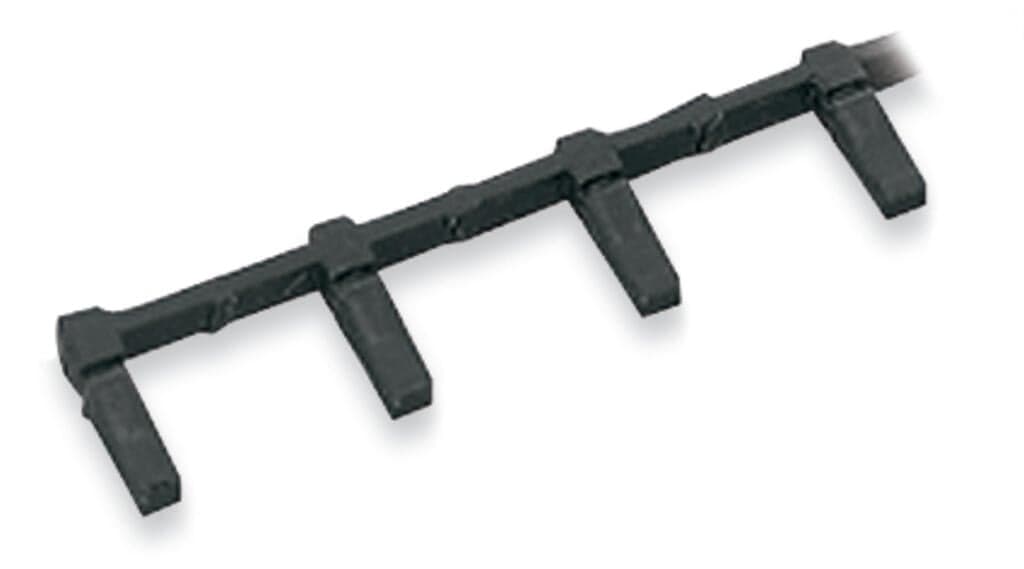

770-201
Key Features
- 1Fast and secure installation of components and cables.
- 2Error-free connection due to precise marking and design.
- 3Compatible with a wide range of applications, including household and building installations.
- 4Meets EN 60998 standards for independent equipment approval.
- 5Ideal for use in junction or distribution boxes, saving time and cost.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for socket;? separable | Note (material data) | Information on material specifications can be found here |
| Color | black | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.037MJ |
| Weight | 0.4g | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
| ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4017332755252 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 12 |
Specifications may be subject to change without notice
