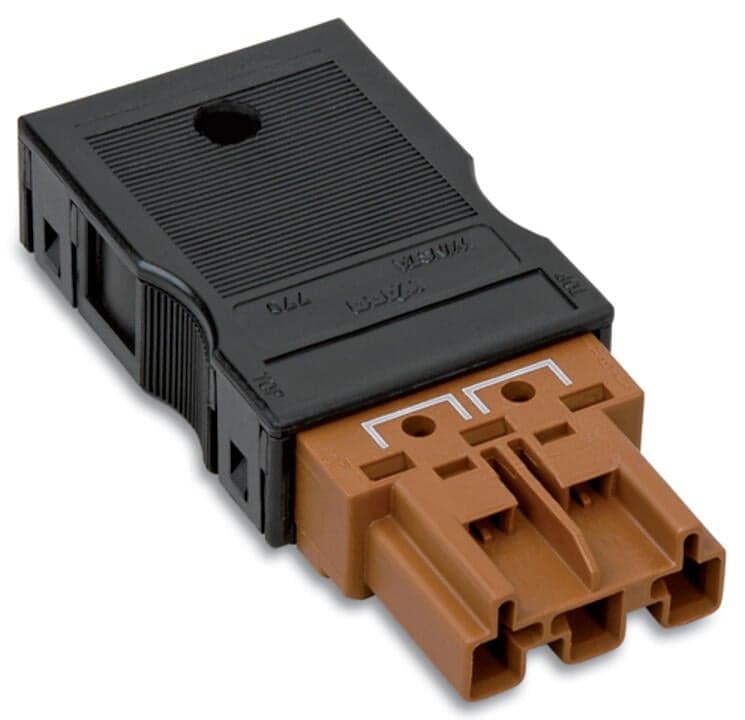

Product Model
770-1373/149-000
Key Features
- 1Manual Operation: Easily secure flying leads with manual locking levers.
- 2High-Voltage Compatibility: Designed for 250 V/4 kV/3 16 A applications.
- 3Durable Construction: Built with robust materials for long-lasting performance.
- 4Versatile Use: Suitable for a wide range of wire sizes (0.25 - 1.5 mm²).
- 5Easy Installation: Simple snap-in device connection with CAGE CLAMP®S.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 10?mm?/ 0.394?inches | Width | 34.6?mm?/ 1.362?inches |
| Height | 15?mm?/ 0.591?inches | Depth | 76?mm?/ 2.992?inches |
| Internal wiring | 4mm2 | Use | Switching function |
| Coding | S | Variable coding | No |
| Marking | ┌─┬─┐ | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
| Protection type | IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Suitable | for distribution connectors; series and two-way circuits |
| Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for pluggable connector |
| Mismating protection | Yes | Locking lever | no |
| Strain relief | strain relief housing | Note (material data) | Information on material specifications can be found here |
| Color | brown | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper or copper alloy; surface-treated | Fire load | 7.069MJ |
| Connector color | brown | Weight | 27.8g |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-05 |
| eCl@ss 9.0 | 27-44-06-05 | ETIM 9.0 | EC002560 |
| ETIM 8.0 | EC002560 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454148300 |
| Customs tariff number | 8536694030 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
| Connection technology | Push-in CAGE CLAMP? | Number of poles | 3 |
