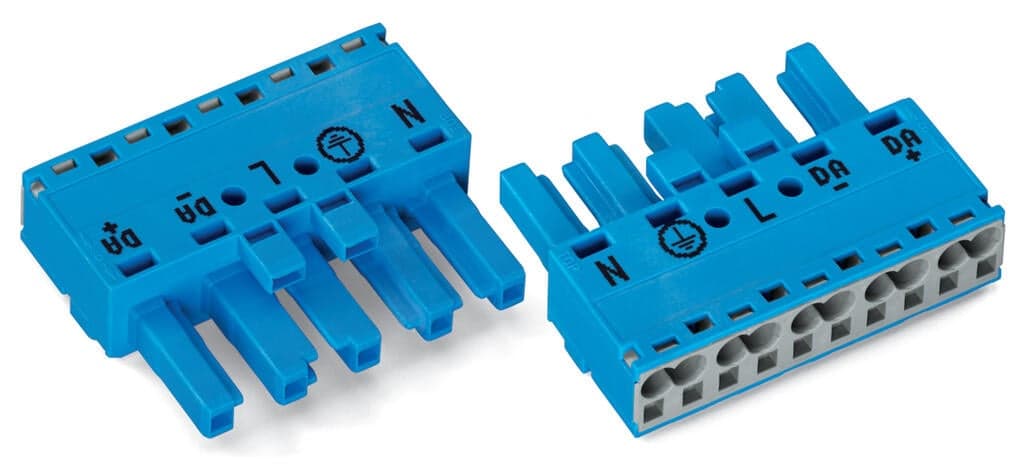

Product Model
770-1105
Key Features
- 1High current capacity up to 25A.
- 2Mismating protection against plugging errors.
- 3Push-in CAGE CLAMP technology for secure connections.
- 4Strain relief housing for cable protection.
- 5Suitable for various applications including DALI and industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 10 | Total number of potentials | 5 |
| Pin spacing | 10 mm / 0.394 inches | Width | 50 mm / 1.969 inches |
| Height | 12.9 mm / 0.508 inches | Depth | 37.5 mm / 1.476 inches |
| Use | DALI, Lighting Management | Coding | I |
| Variable coding | No | Marking | N ? L DA- DA+ |
| Potential Marking | N ? L DA- DA+ | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Retention force of a plug-in connection | Locked: > 80 N | Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
| Number of mating cycles | 200, without resistive load | Protection type | IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
| Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
| Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | Can be retrofitted | Locking of plug-in connection | Locking lever |
| Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
| Color | blue | Cover color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
| Fire load | 0.354MJ | Weight | 15.4g |
| Processing temperature | -5 … +40 °C | Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-05 |
| eCl@ss 9.0 | 27-44-06-05 | ETIM 9.0 | EC002560 |
| ETIM 8.0 | EC002560 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50 pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4044918252706 |
| Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 400V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 25A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
| Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 23A |
| Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Nominal cross-section | 4 mm2 / 12 AWG |
| Solid conductor | 0.5 … 4 mm2 / 20 … 12 AWG | Solid conductor; push-in termination | 1.5 … 4 mm2 / 16 … 12 AWG |
| Stranded conductor | 0.5 … 2.5 mm2 / 20 … 14 AWG | Fine-stranded conductor | 0.5 … 4 mm2 / 20 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5 mm2 / 20 … 16 AWG | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5 mm2 / 20 … 14 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 1.5 mm2 / 16 AWG | Strip length | 9 mm / 0.35 inches |
| Number of poles | 5 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
