Product Model

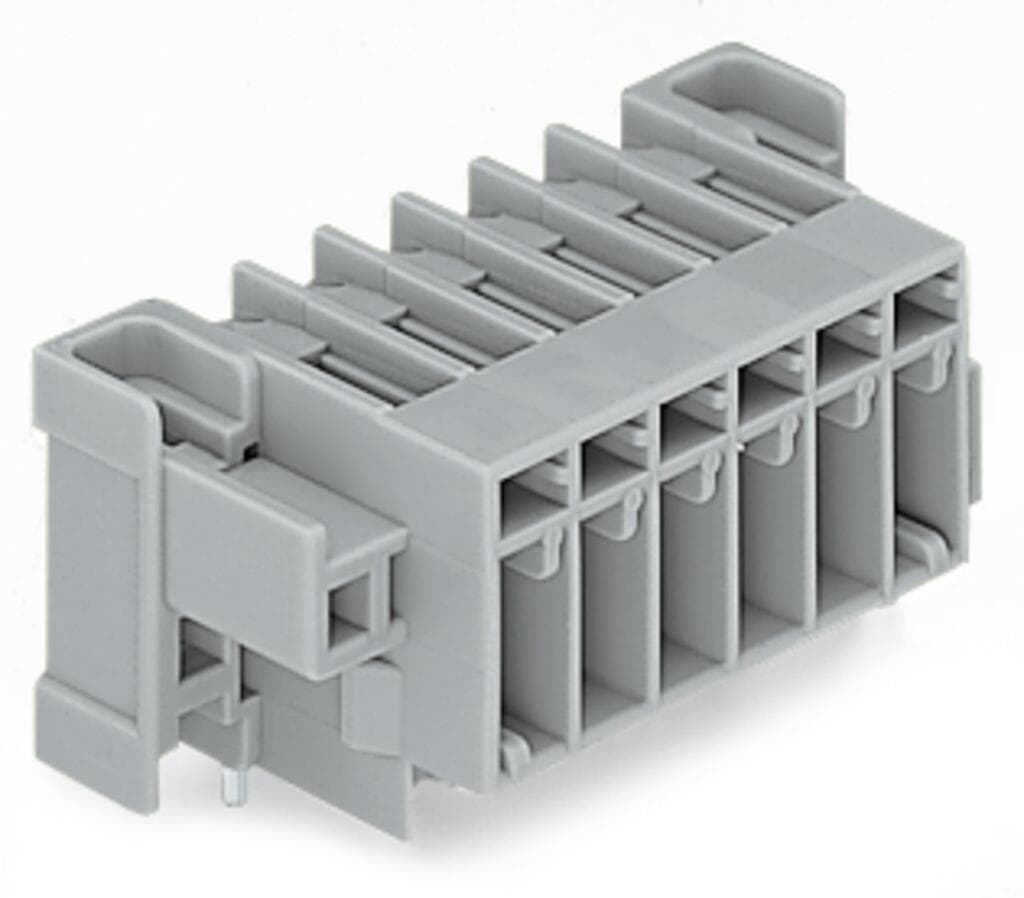

769-667/004-000
Key Features
- 1Quick and easy to use, saving time and cost in various installations.
- 2Suitable for PCB, control cabinet, and lighting connections, accommodating different conductor types.
- 3Features CAGE CLAMP spring connections and fixing flanges for secure mounting.
- 4Compact 1 x 1 mm angled solder pins with a 5mm pin spacing, facilitating easy wiring.
- 5Approved as independent equipment per EN 60998, ensuring safety in household and building applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Total number of potentials | 7 | Number of levels | 1 |
| Preceding contacts | No | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 49.7?mm?/ 1.957?inches | Height from the surface | 18.3?mm?/ 0.72?inches |
| Depth | 22.2?mm?/ 0.874?inches | Variable coding | Yes |
| Mounting type | Feedthrough flange | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Male header | Connector (connection type) | for PCB |
| Mismating protection | No | Plugging without loss of pin spacing | No |
| Mating direction to the PCB | 0° | PCB contact | THT |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.29MJ |
| Weight | 9g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4044918453332 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 250V |
| Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 500V |
| Rated surge voltage (III/2) | 4kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Number of poles | 7 |
