Product Model
769-663/003-000
Key Features

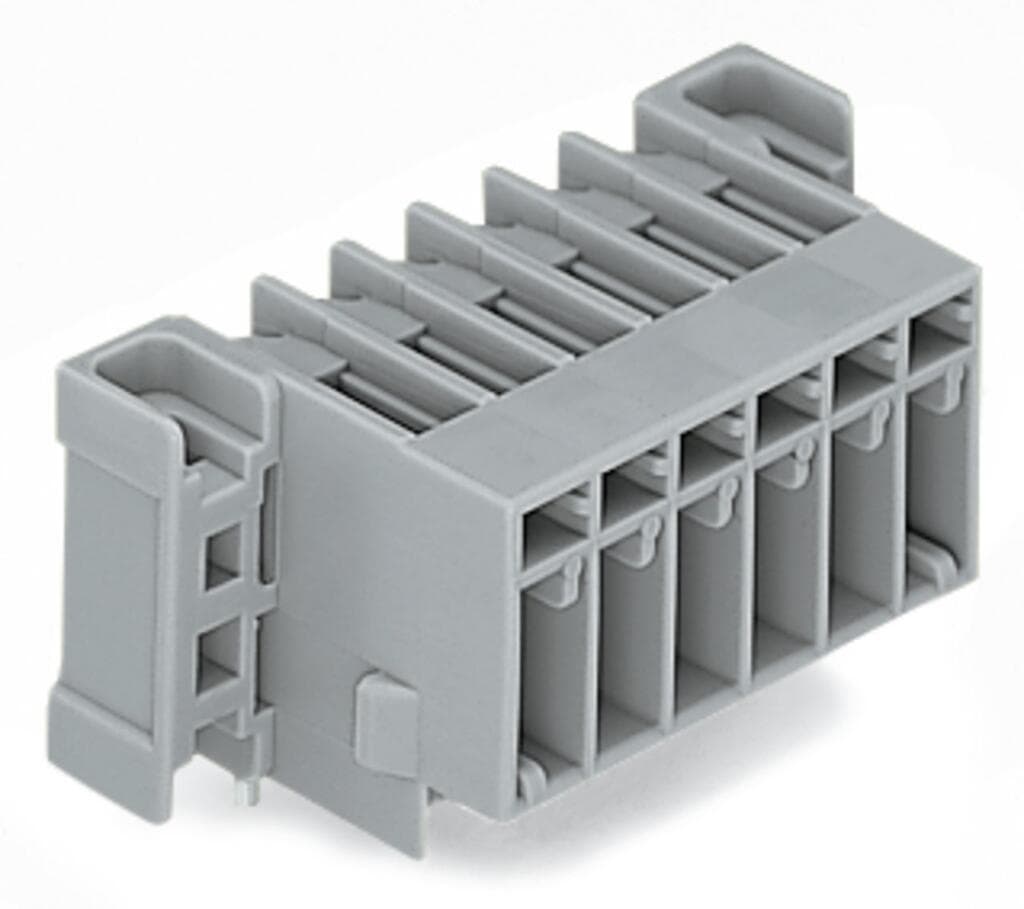

- 1Angled Design for Easy PCB Mounting: The WAGO 769-663/003-000 THT male header is designed with an angled shape to facilitate easy mounting on PCBs.
- 2Rohs Compliant and High-Quality Materials: Made from high-quality polyamide 66 (PA 66) and compliant with ROHS standards, ensuring reliability and safety.
- 3Spring-Cage (Push-In) Connections: Utilizes spring-cage connections for secure and efficient electrical connections.
- 4Rated for 32A Current: Designed to handle a maximum current of 32A, making it suitable for various industrial applications.
- 5Certified for Overvoltage Category III/ Pollution Degree 3: Meets stringent electrical safety standards with certifications from DEKRA and UL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Total number of potentials | 3 | Number of levels | 1 |
| Preceding contacts | No | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 29.7?mm?/ 1.169?inches | Height from the surface | 18.3?mm?/ 0.72?inches |
| Depth | 22.2?mm?/ 0.874?inches | Variable coding | Yes |
| Mounting type | Mounting flange | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Male header | Connector (connection type) | for PCB |
| Mismating protection | No | Plugging without loss of pin spacing | No |
| Mating direction to the PCB | 0° | PCB contact | THT |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.104MJ |
| Weight | 4.5g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4044918396585 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 250V |
| Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 500V |
| Rated surge voltage (III/2) | 4kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Number of poles | 3 |
