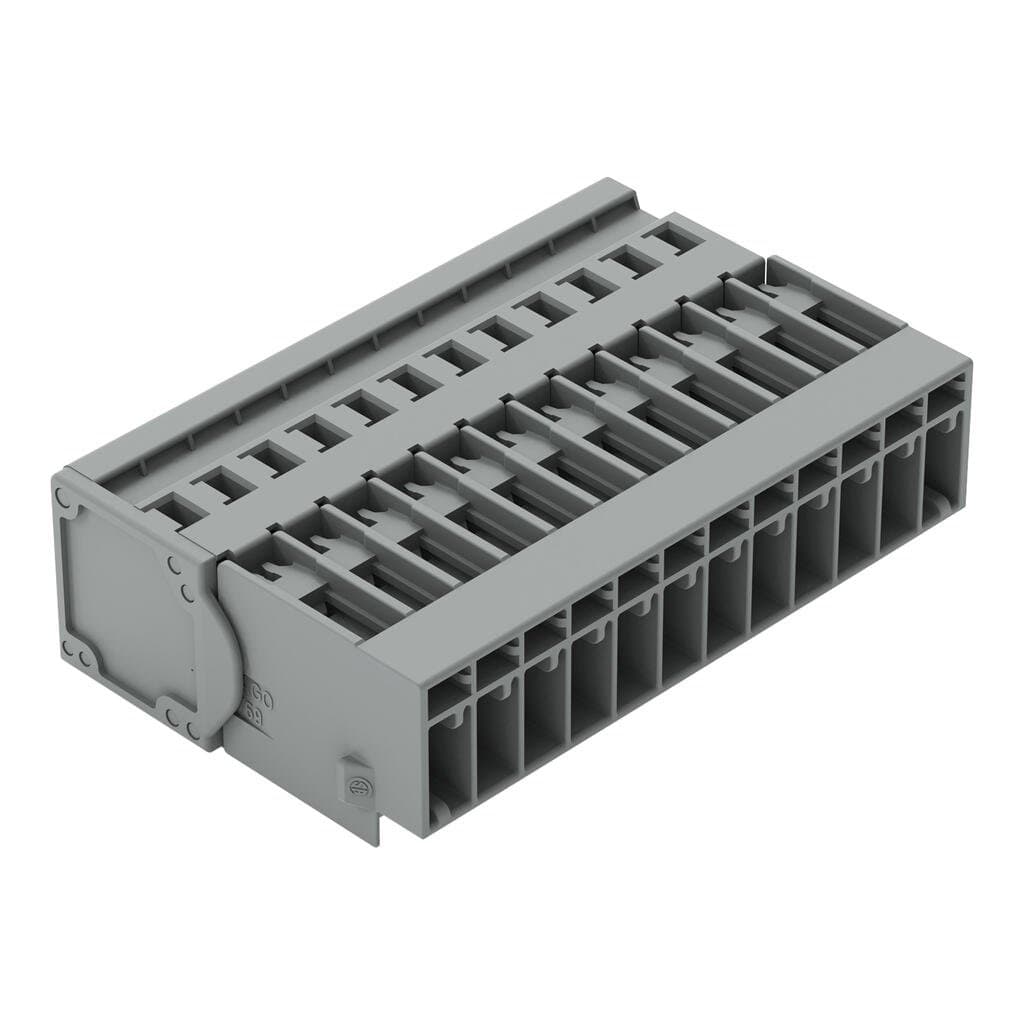

Product Model
769-612
Key Features
- 1Secure and reliable connection with spring-loaded clamps.
- 2Supports multiple connections in a single unit.
- 3Efficient design for easy wiring and minimal space usage.
- 4Easy installation on DIN-35 rails or panels.
- 5Available in gray for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 12 | Total number of potentials | 12 |
| Pin spacing | 5 mm / 0.197 inches | Width | 63.6 mm / 2.504 inches |
| Height | 18.3 mm / 0.72 inches | Depth | 40.2 mm / 1.583 inches |
| Variable coding | Yes | Direct ground contact to DIN-rail/drilled hole/housing | No |
| Mounting type | Flying leads | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
| Mismating protection | No | Plugging without loss of pin spacing | No |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.767MJ |
| Weight | 35.2g | Processing temperature | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25 pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4044918521710 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4 mm2 / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm2 / 28 … 12 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Number of poles | 12 | Wiring direction | Front-entry wiring |
