Product Model

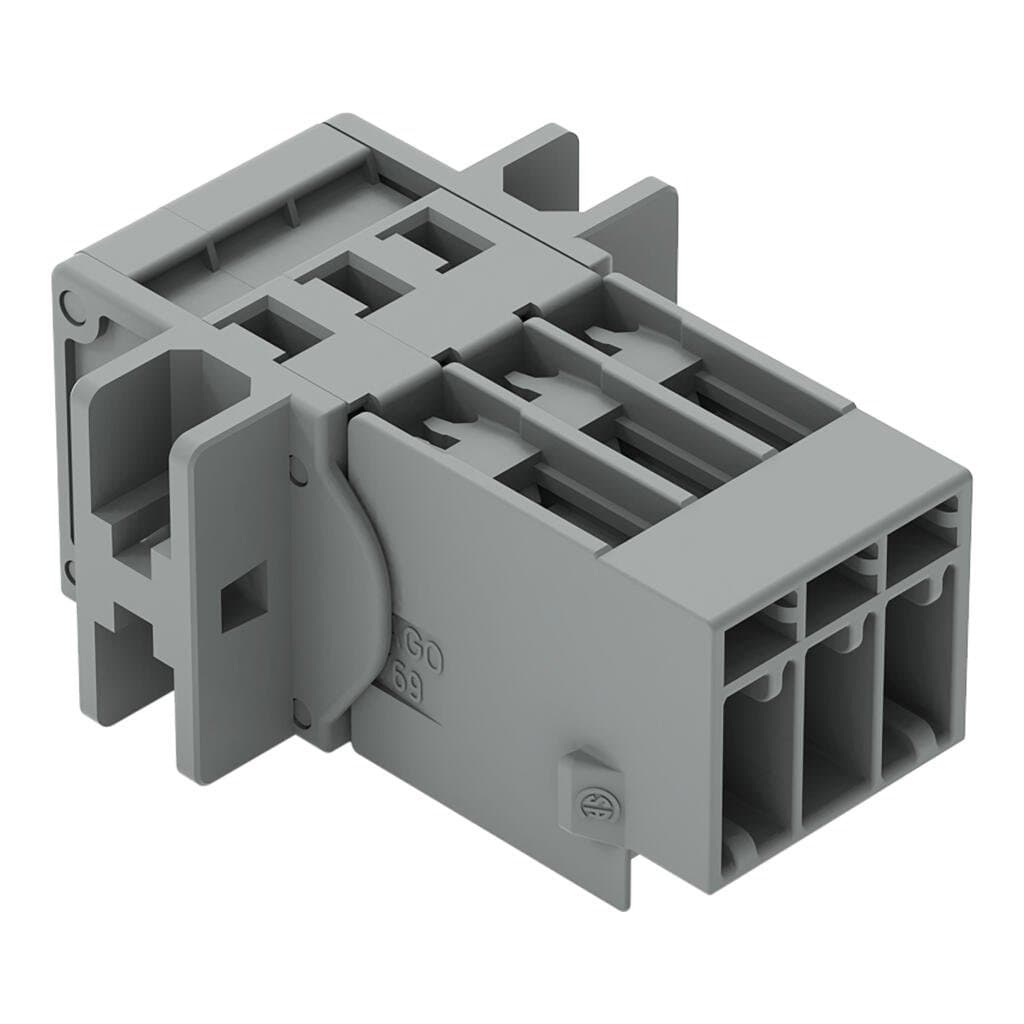

769-603/002-000
Key Features
- 1Secure Electrical Connections: The WAGO 769-603/002-000 connector ensures reliable connections with its CAGE CLAMP spring mechanism.
- 2High Current Rating: Supports up to 32A of current, making it suitable for demanding electrical applications.
- 3Versatile Wire Size Compatibility: Accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 4Durable Construction: Built with thermoplastic insulating material and designed for long-lasting performance.
- 5Easy Installation: Features a simple operating tool for quick and efficient connection setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 3 | Total number of potentials | 3 |
| Pin spacing | 5 mm / 0.197 inches | Width | 30.4 mm / 1.197 inches |
| Height from the surface | 18.3 mm / 0.72 inches | Depth | 40.2 mm / 1.583 inches |
| Variable coding | Yes | Direct ground contact to DIN-rail/drilled hole/housing | No |
| Mounting type | Mounting flange | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
| Mismating protection | No | Plugging without loss of pin spacing | No |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.281MJ |
| Weight | 10.8g | Processing temperature | -35 … +85 °C |
| Continuous operating temperature | -60 … +105 °C | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50 pcs | Packaging type | Box |
| Country of origin | PL | GTIN | 4044918520812 |
| Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
| Solid conductor | 0.08 … 4 mm2 / 28 … 12 AWG | Fine-stranded conductor | 0.08 … 4 mm2 / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Number of poles | 3 |
| Wiring direction | Front-entry wiring |
