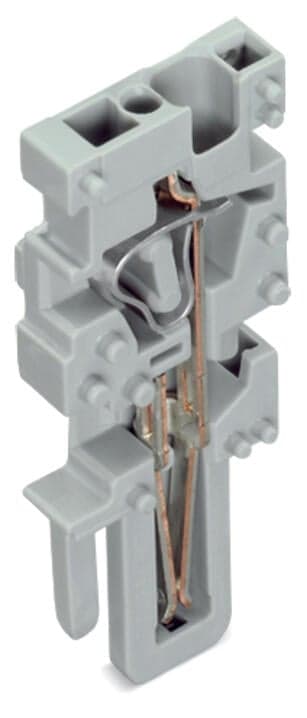

Product Model
769-502
Key Features
- 1High Amperage Rating: 32 A
- 2Compact Design: 1.78 in H x 0.19 in W x 0.72 in D
- 3Easy Installation: CAGE CLAMP connection technology
- 4Versatile Use: Suitable for household and building installations
- 5Durable Material: Made from Polyamide (PA66) for long-lasting performance
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 1 |
| Total number of potentials | 1 | Width | 5?mm?/ 0.197?inches |
| Height | 45.2?mm?/ 1.78?inches | Depth | 18.3?mm?/ 0.72?inches |
| Module width | 5?mm?/ 0.197?inches | Variable coding | Yes |
| Direct ground contact to DIN-rail/drilled hole/housing | No | Marking level | Side marking |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Note (material data) | Information on material specifications can be found here |
| Color | gray | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.061MJ |
| Halogen-free | Yes | Weight | 3.1g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 250?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4017332331425 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 61984 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Number of poles | 1 | Wiring direction | Front-entry wiring |
