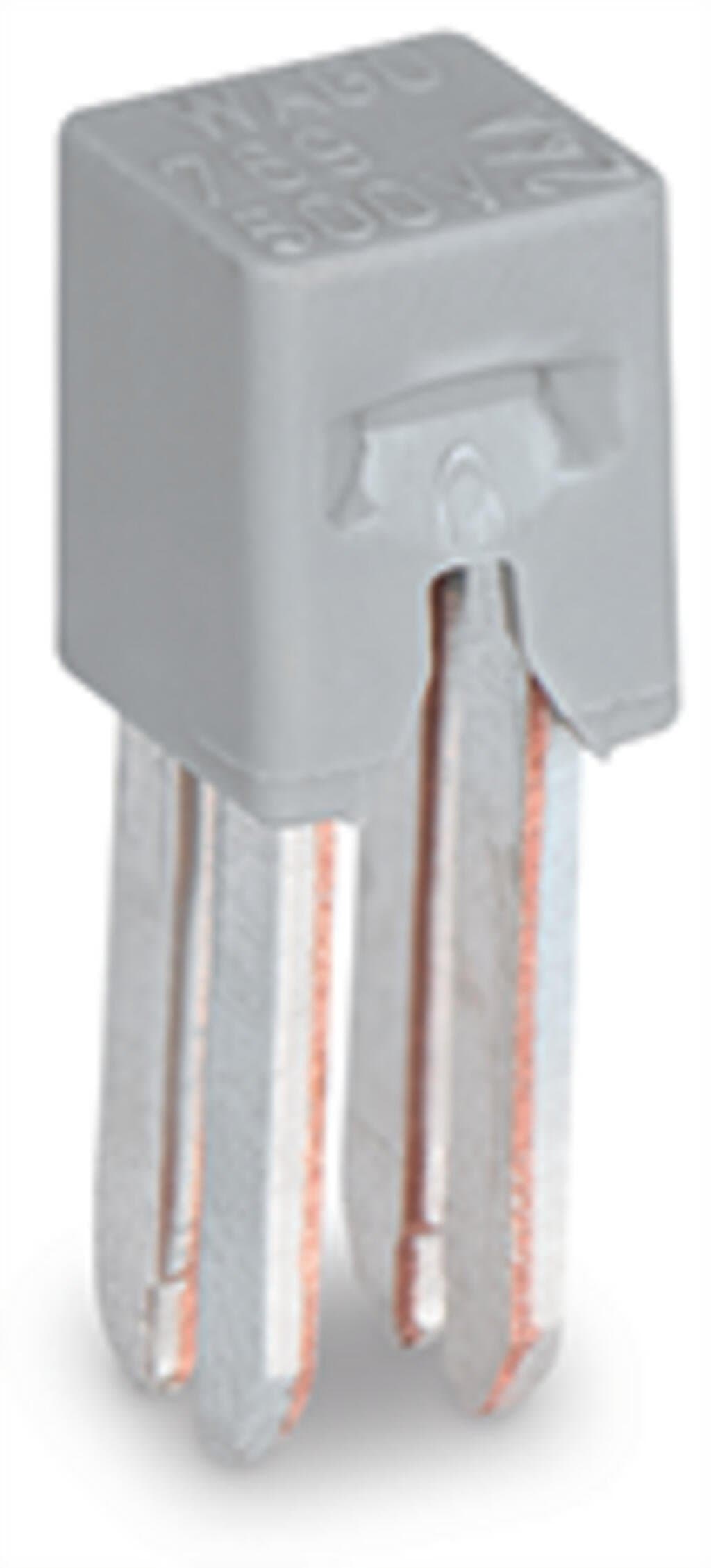

Product Model
769-402
Key Features
- 10.197 in H x 0.197 in W dimensions.
- 2Ensures reliable electrical connections.
- 3Easy integration into your circuit.
- 4Enhances visibility in complex wiring systems.
- 5Meets high safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 5?mm?/ 0.197?inches | Height | 5?mm?/ 0.197?inches |
| Jumper assignment | 1-2 | Note (material data) | Information on material specifications can be found here |
| Color | gray | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.002MJ |
| Weight | 0.6g | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918255417 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated current | 24A |
Specifications may be subject to change without notice
