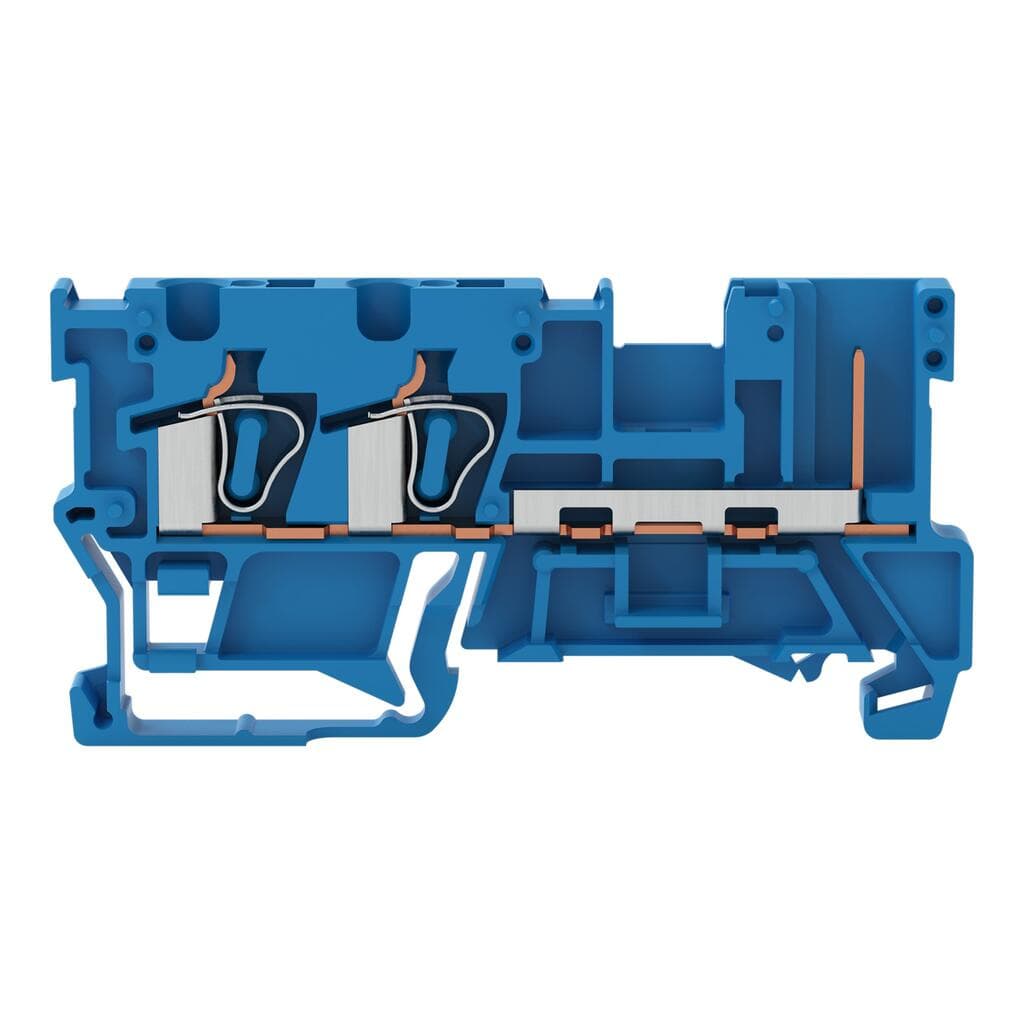

Product Model
769-251/000-006
Key Features
- 1Supports up to 32A current.
- 2Suitable for DIN-rail 35 x 15 and 35 x 7.5.
- 3Secure and reliable connection method.
- 4Easy identification in electrical systems.
- 5Meets environmental and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 2 |
| Total number of potentials | 1 | Number of levels | 1 |
| Width | 5?mm?/ 0.197?inches | Height | 69?mm?/ 2.717?inches |
| Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | blue |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.134MJ |
| Weight | 7.8g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454222130 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 1.024W | Rated current I<sub>N</sub> for specified power loss | 32A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
| Total number of connection points | 2 | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
| Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
| Number of connection points 2 | 1 |
Specifications may be subject to change without notice
