Product Model
769-239/281-434
Key Features

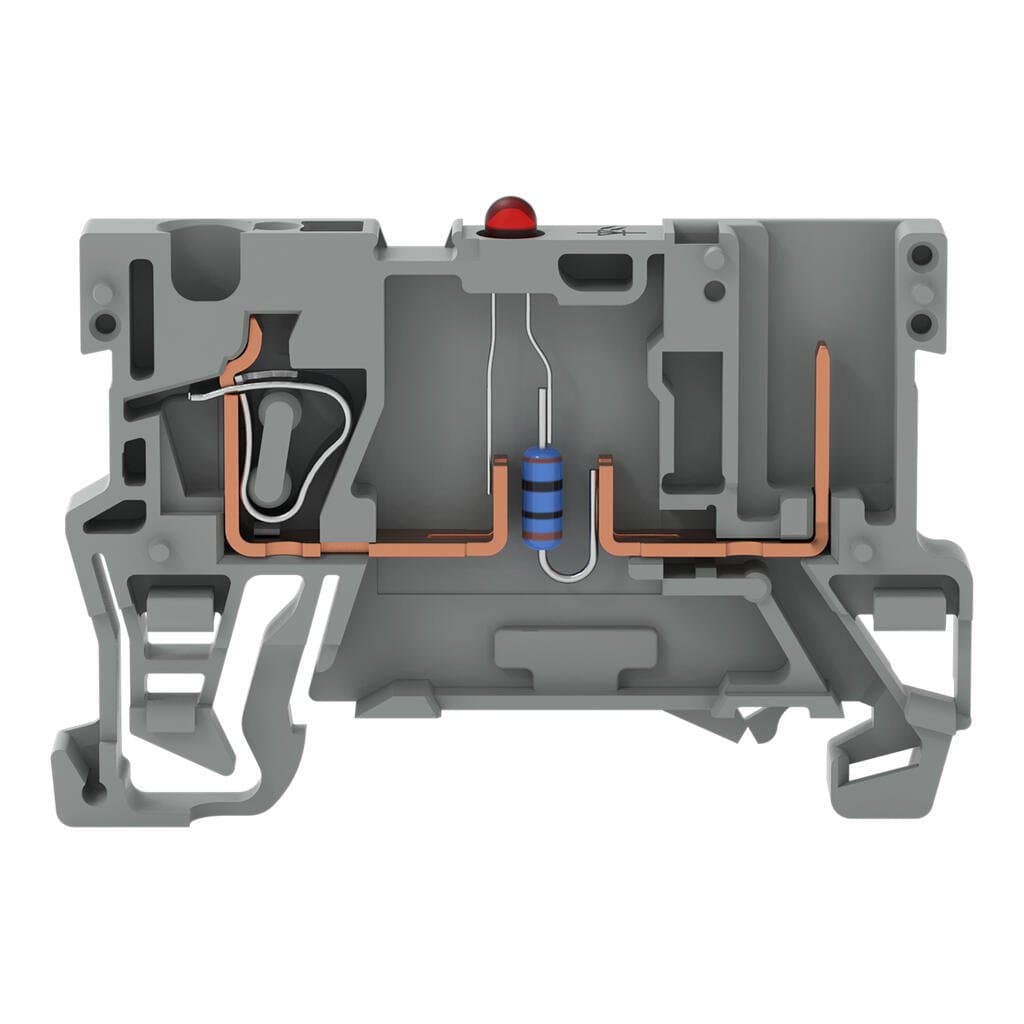

- 1The WAGO 769-239/281-434 offers fast and vibration-proof spring pressure connection technology for solid and stranded conductors.
- 2Equipped with a red LED indicator (24Vdc, anode on the left side) for easy visual confirmation.
- 3Conveniently rail-mountable, making it easy to integrate into various industrial settings.
- 4Push-in termination of conductors ensures a maintenance-free operation.
- 55 mm wide, providing a compact solution for your terminal block needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 2-conductor female plugs cannot be used. |
| Clamping units | 1 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
| Height | 52.5?mm?/ 2.067?inches | Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.099MJ | Weight | 5.3g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
| ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454619541 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated current | 0.025A | Voltage type 1 | DC |
| Nominal voltage | 24V | Connection technology | CAGE CLAMP? |
| Total number of connection points | 1 | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
| Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
| Number of connection points 2 | 1 |
Specifications may be subject to change without notice
