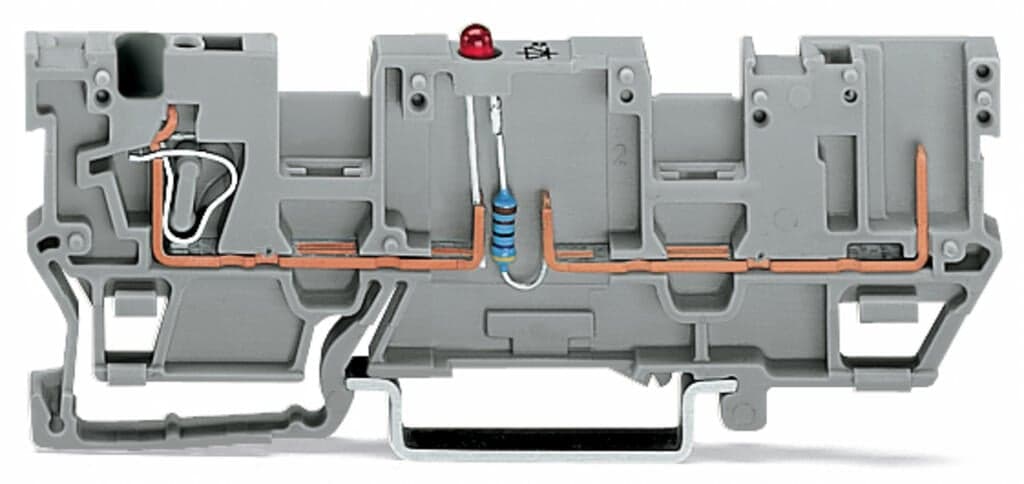

Product Model
769-219/281-434
Key Features
- 15 mm wide, 87.5 mm high, and 28.5 mm depth from DIN-rail.
- 2Supports wire sizes from 0.08 mm² to 4 mm² or #28AWG to #12AWG.
- 3Anode on the left side, providing visual feedback.
- 4Compatible with DIN-rail 35 x 15 and 35 x 7.5.
- 5Utilizes CAGE CLAMP spring connections and plug-in pins.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 1 |
| Total number of potentials | 1 | Number of levels | 1 |
| Width | 5?mm?/ 0.197?inches | Height | 87.5?mm?/ 3.445?inches |
| Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.161MJ |
| Weight | 8.2g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821418849 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated current | 0.025A |
| Voltage type 1 | DC | Nominal voltage | 24V |
| Connection technology | CAGE CLAMP? | Total number of connection points | 1 |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Wiring direction | Front-entry wiring | Number of connection points 2 | 1 |
