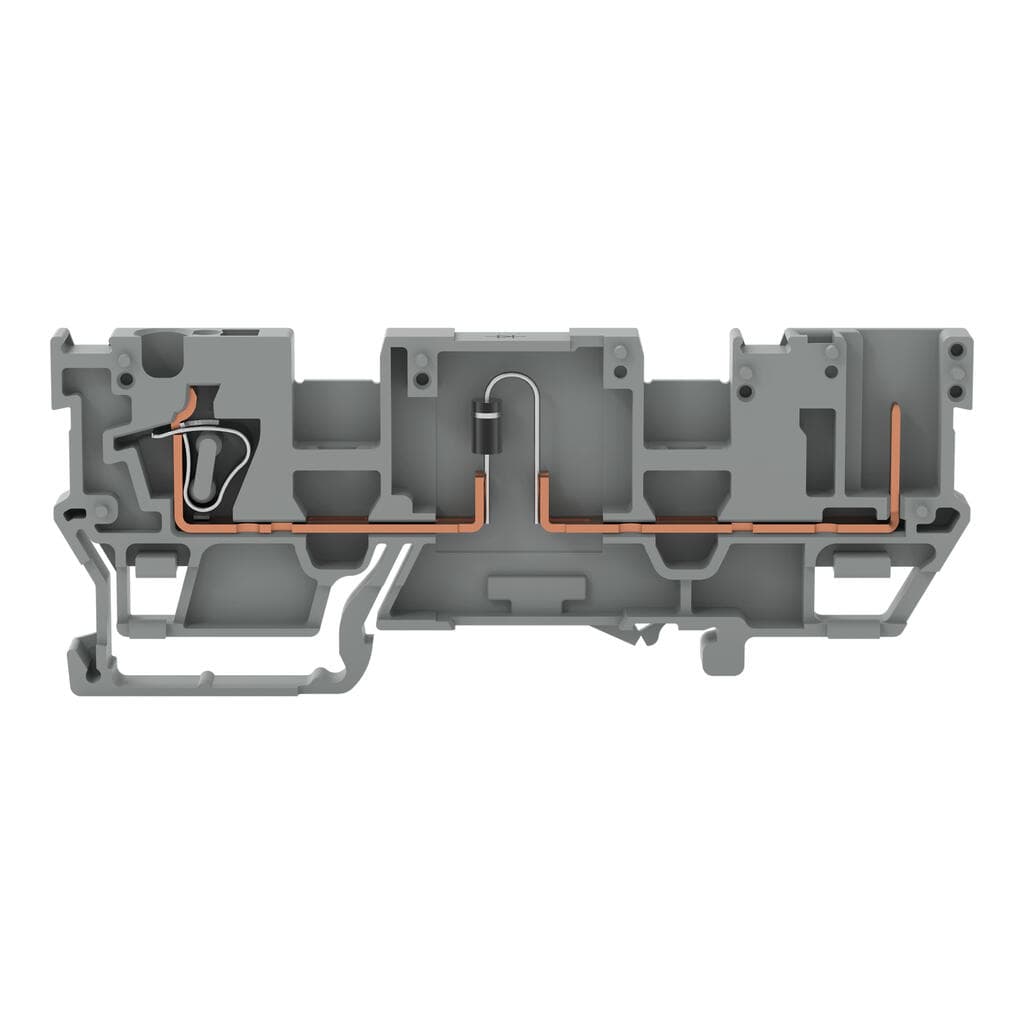

Product Model
769-218/281-410
Key Features
- 1Efficient Wire Management: Accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 2Robust Connections: Utilizes CAGE CLAMP spring connections and plug-in pin connections.
- 3Durable Construction: Gray color, designed for DIN-rail 35 x 15 and 35 x 7.5 mounting.
- 4Versatile Jumper Positions: Includes two jumper positions for flexible circuit setup.
- 5High-Quality Diode: Equipped with a 1N4007 diode, anode on the left side for reliable protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 1 |
| Total number of potentials | 1 | Number of levels | 1 |
| Width | 5?mm?/ 0.197?inches | Height | 87.5?mm?/ 3.445?inches |
| Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.173MJ |
| Weight | 8.1g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454198381 | Customs tariff number | 8536904000 |
| CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 6a8ba8c6-5ea3-45f0-bb03-3805bae88e55 | SCIP notification number (Belgium) | 03e589ec-9621-4764-8f8c-8b077e0b7092 |
| SCIP notification number (Bulgaria) | 21c279bd-538b-4c17-b458-f7c6325cd1bf | SCIP notification number (Czech Republic) | 6452c108-ffc5-4668-a7ba-f4d6478371da |
| SCIP notification number (Denmark) | f6357bee-2307-463e-a791-13babf838cec | SCIP notification number (Finland) | aa756b1e-8de7-4ab1-bb6b-30318e3fba50 |
| SCIP notification number (France) | 7f48b72a-f41f-45bc-a206-97f0854c6cec | SCIP notification number (Germany) | c5871bc0-e241-43f1-9972-a7eac02a0509 |
| SCIP notification number (Hungary) | 44e418e6-b308-404f-9778-bbecb7e08d0e | SCIP notification number (Italy) | 5922bde7-a4d7-465b-825c-991c24935076 |
| SCIP notification number (Netherlands) | 6e09dc49-6225-48c1-a50d-692fef58b0c8 | SCIP notification number (Poland) | 39058992-5489-4cc9-8963-59622c942d7e |
| SCIP notification number (Romania) | bf5cdd6a-e623-4383-bb38-0a8cd4607da7 | SCIP notification number (Sweden) | af843322-ae6c-4f70-a713-1235e52e8a42 |
| Rated current | 0.5A | Nominal voltage | 250V |
| Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
| Total number of connection points | 1 | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
| Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
| Number of connection points 2 | 1 |
Specifications may be subject to change without notice
