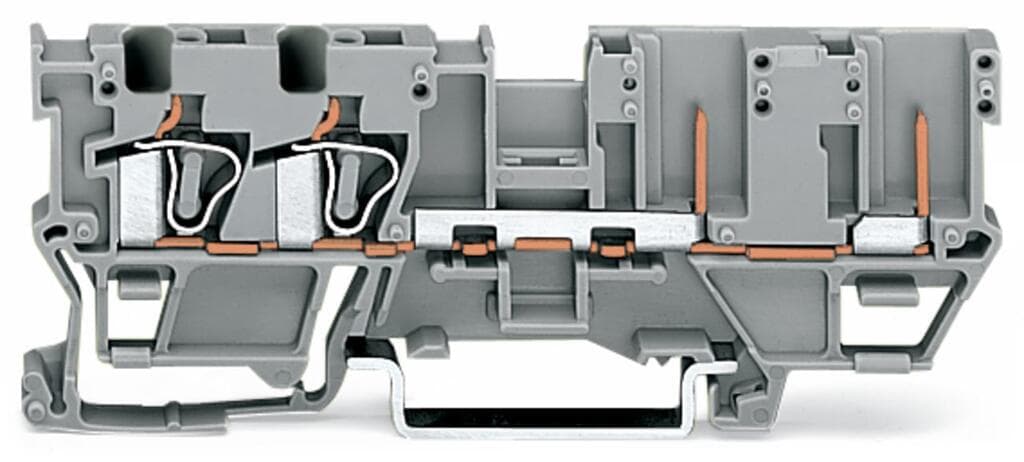

Product Model
769-171
Key Features
- 1High Current Rating: Supports up to 32A for efficient power distribution.
- 2Versatile Wire Compatibility: Accommodates wire sizes from 12 to 28 AWG.
- 3Durable Construction: Made from polyamide (PA66) with a robust design.
- 4Easy Installation: Push-in and spring connections simplify wiring.
- 5Compliant with Standards: Meets RoHS and SVHC compliance requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 1-conductor angled female plugs cannot be used. |
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
| Height | 87.5?mm?/ 3.445?inches | Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.169MJ | Weight | 9.7g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-20 |
| eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4045454871673 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.024W |
| Rated current I<sub>N</sub> for specified power loss | 32A | Resistance value for specified, current-dependent power loss | 0.001Ω |
| Connection technology | CAGE CLAMP? | Total number of connection points | 2 |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Wiring direction | Front-entry wiring | Number of connection points 2 | 1 |
Specifications may be subject to change without notice
