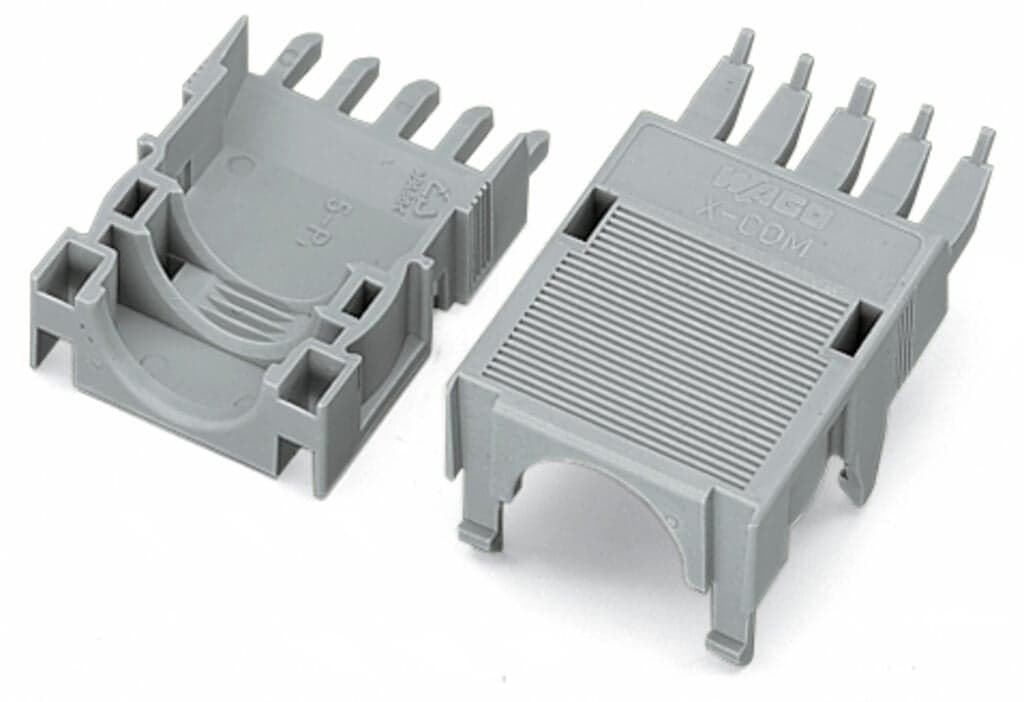

Product Model
769-1609
Key Features
- 19-Pole Connectivity: Accommodates up to nine different potentials for versatile electrical connections.
- 25mm Pin Spacing: Ensures precise and reliable connection points for your electrical setup.
- 3Durable Gray Housing: Made from high-quality polyamide (PA66) for excellent insulation and durability.
- 4Snap-on Type: Easy to install and secure with a snap-on mechanism for quick assembly.
- 5Rohs Compliant: Meets international standards for safety and environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 45?mm?/ 1.772?inches | Height | 18.3?mm?/ 0.72?inches |
| Depth | 46?mm?/ 1.811?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.431MJ |
| Weight | 11.2g | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332714631 | Customs tariff number | 8538908160 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 9 |
Specifications may be subject to change without notice
