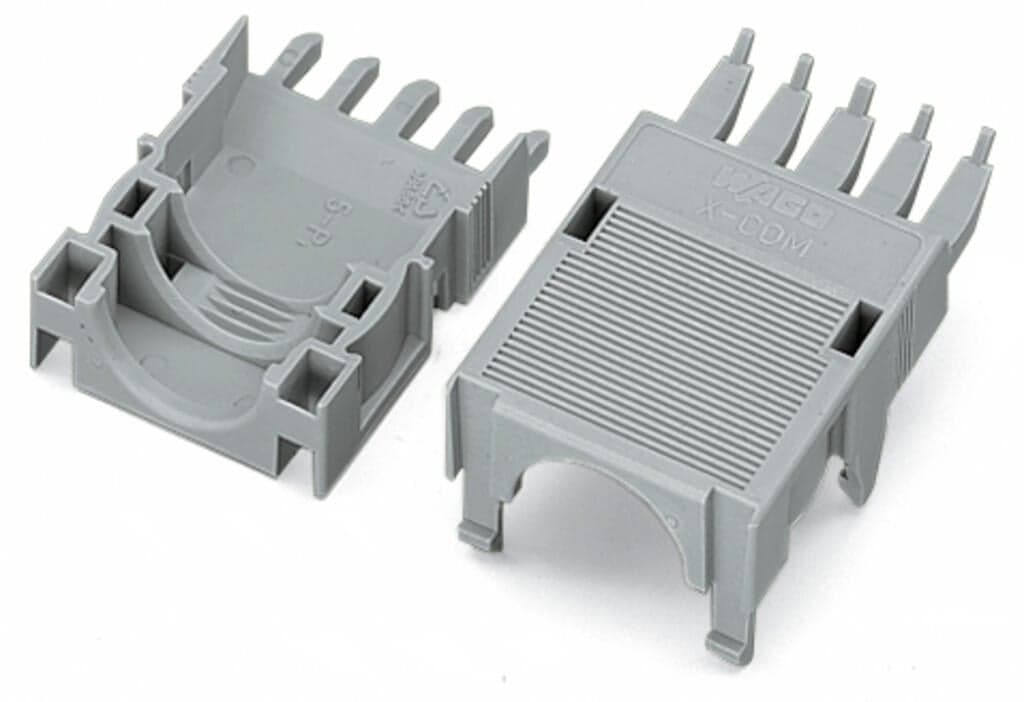

Product Model
769-1607
Key Features
- 1Snap-on Type Design: Easy installation with a snap-on mechanism.
- 27-Pole Compatibility: Suitable for 7-pole connectors.
- 3Gray Color: Available in a durable gray finish.
- 4Cable Mounting: Designed for secure cable mounting.
- 5Strain Relief Support: Provides reliable strain relief for connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 35?mm?/ 1.378?inches | Height | 18.3?mm?/ 0.72?inches |
| Depth | 36.5?mm?/ 1.437?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.29MJ |
| Weight | 7.8g | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332715126 | Customs tariff number | 8538908160 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 7 |
Specifications may be subject to change without notice
