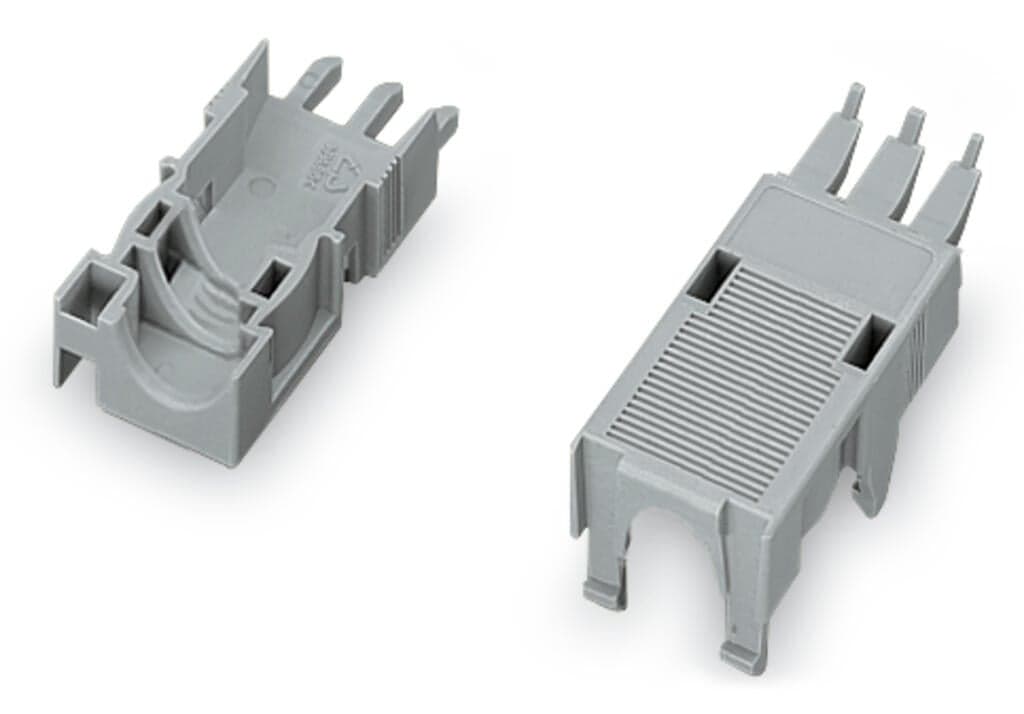

Product Model
769-1604
Key Features
- 1Designed for both female and male connectors.
- 2Includes 2 parts for easy installation.
- 3Features 5 mm pin spacing for precise alignment.
- 4Compatible with 4-pole configurations.
- 5Gray color for easy identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 20?mm?/ 0.787?inches | Height | 18.3?mm?/ 0.72?inches |
| Depth | 31.5?mm?/ 1.24?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.194MJ |
| Weight | 4.1g | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332652896 | Customs tariff number | 8538908160 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 4 |
Specifications may be subject to change without notice
