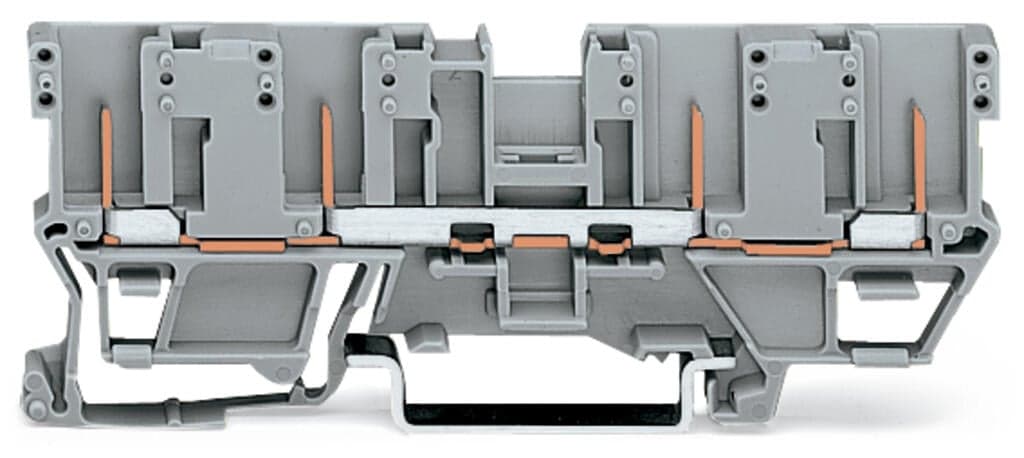

Product Model
769-151/000-004
Key Features
- 1Supports up to 32A rated current, ideal for demanding applications.
- 2Easy installation on DIN-35 rail, ensuring secure and compact integration.
- 3Made from durable polyamide (PA66) with a fire load of 0.161MJ, ensuring long-lasting performance.
- 4Simplifies wiring with front-entry design, reducing installation time and effort.
- 5Meets IEC/EN 60947-7-1 standards and is RoHS compliant, ensuring environmental and safety regulations are met.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Note | 1-conductor angled female plugs cannot be used. |
| Total number of potentials | 1 | Number of levels | 1 |
| Width | 5?mm?/ 0.197?inches | Height | 87.5?mm?/ 3.445?inches |
| Depth from upper-edge of DIN-rail | 28.5?mm?/ 1.122?inches | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.222MJ |
| Weight | 8.5g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4066966071597 |
| Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Rated current I<sub>N</sub> for specified power loss | 32A |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
