Product Model

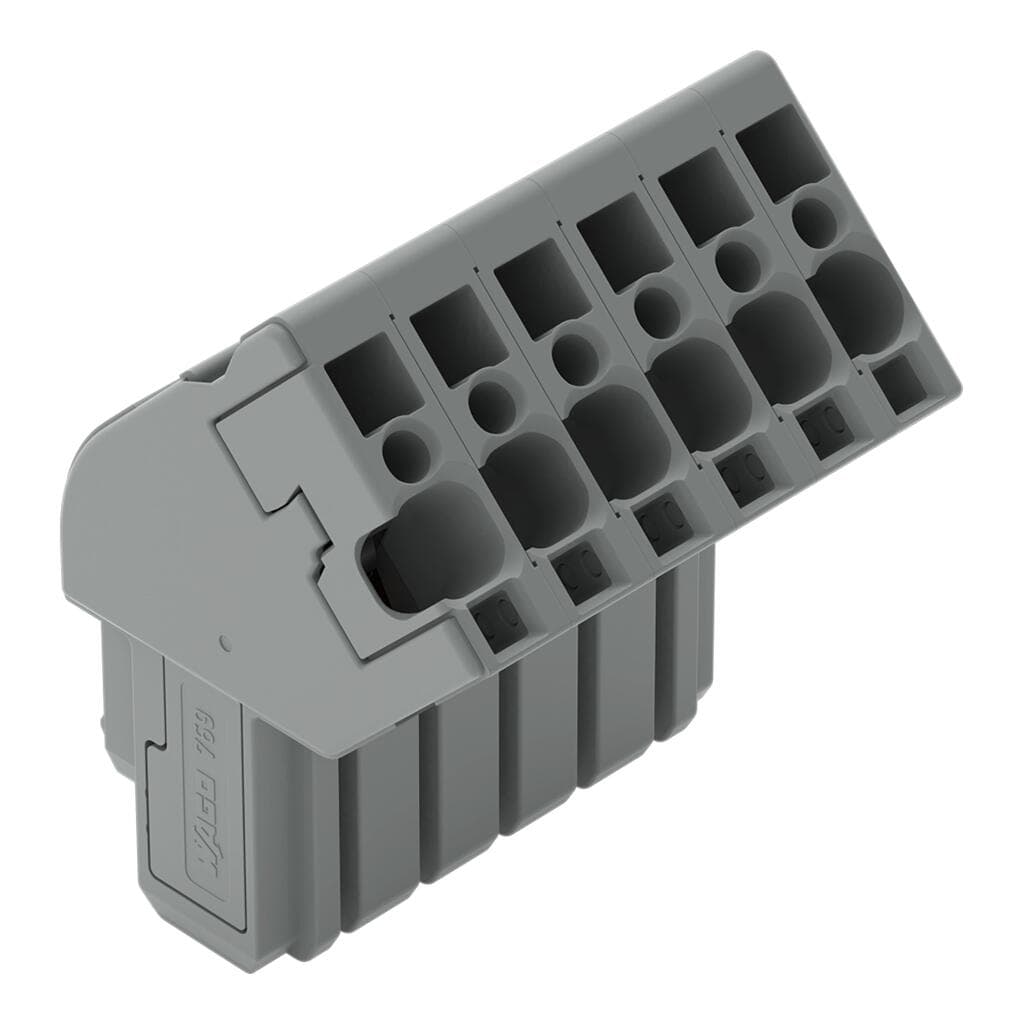

769-106/022-000
Key Features
- 1Secure Connection Technology: Equipped with WAGO's CAGE CLAMP technology for easy and secure conductor connections.
- 2Durable Construction: Made from high-quality polyamide (PA66) for insulation, ensuring long-lasting performance.
- 3Angled Design: Angled design facilitates easy wiring and reduces strain on conductors.
- 4High Current Rating: Supports up to 32 A of rated current, making it suitable for demanding applications.
- 5Compliance Certifications: Meets international safety standards including EN 60947 and UL 1059, ensuring compliance in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 6 |
| Total number of potentials | 6 | Width | 30?mm?/ 1.181?inches |
| Height | 37.1?mm?/ 1.461?inches | Depth | 26.5?mm?/ 1.043?inches |
| Module width | 5?mm?/ 0.197?inches | Variable coding | Yes |
| Direct ground contact to DIN-rail/drilled hole/housing | No | Marking level | Side marking |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.346MJ | Halogen-free | Yes |
| Weight | 14.9g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918547581 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 61984 |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
| Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 6 |
| Wiring direction | Front-entry wiring | Conductor entry direction to mating direction | 45° |
Specifications may be subject to change without notice
