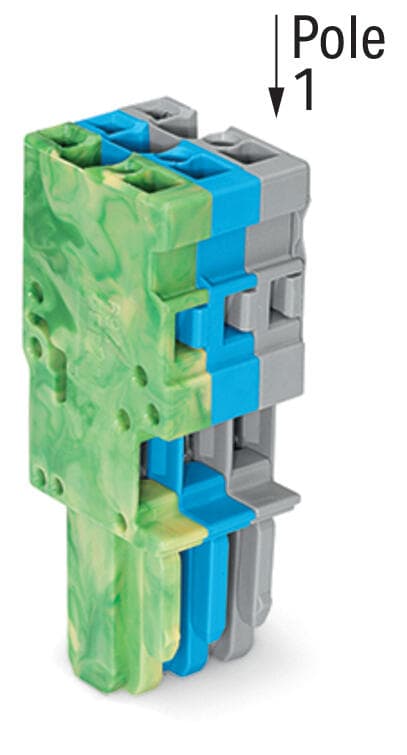

Product Model
769-103/000-039
Key Features
- 1Robust Construction: Built with durable materials for long-lasting performance.
- 2Easy Installation: Plug-in mounting design simplifies setup and reduces installation time.
- 3Versatile Usage: Compatible with wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 4Safety Features: Ground end module (green-yellow) ensures electrical safety.
- 5Code Compatibility: Codable and can be commoned with miniature adjacent jumpers for efficient coding.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 3 |
| Total number of potentials | 3 | Width | 15?mm?/ 0.591?inches |
| Height | 45.2?mm?/ 1.78?inches | Depth | 18.3?mm?/ 0.72?inches |
| Module width | 5?mm?/ 0.197?inches | Variable coding | Yes |
| Direct ground contact to DIN-rail/drilled hole/housing | No | Marking level | Side marking |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Note (material data) | Information on material specifications can be found here |
| Color | gray/blue/green-yellow | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.195MJ | Halogen-free | Yes |
| Weight | 9.6g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454285142 |
| Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 61984 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Number of poles | 3 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
