Product Model

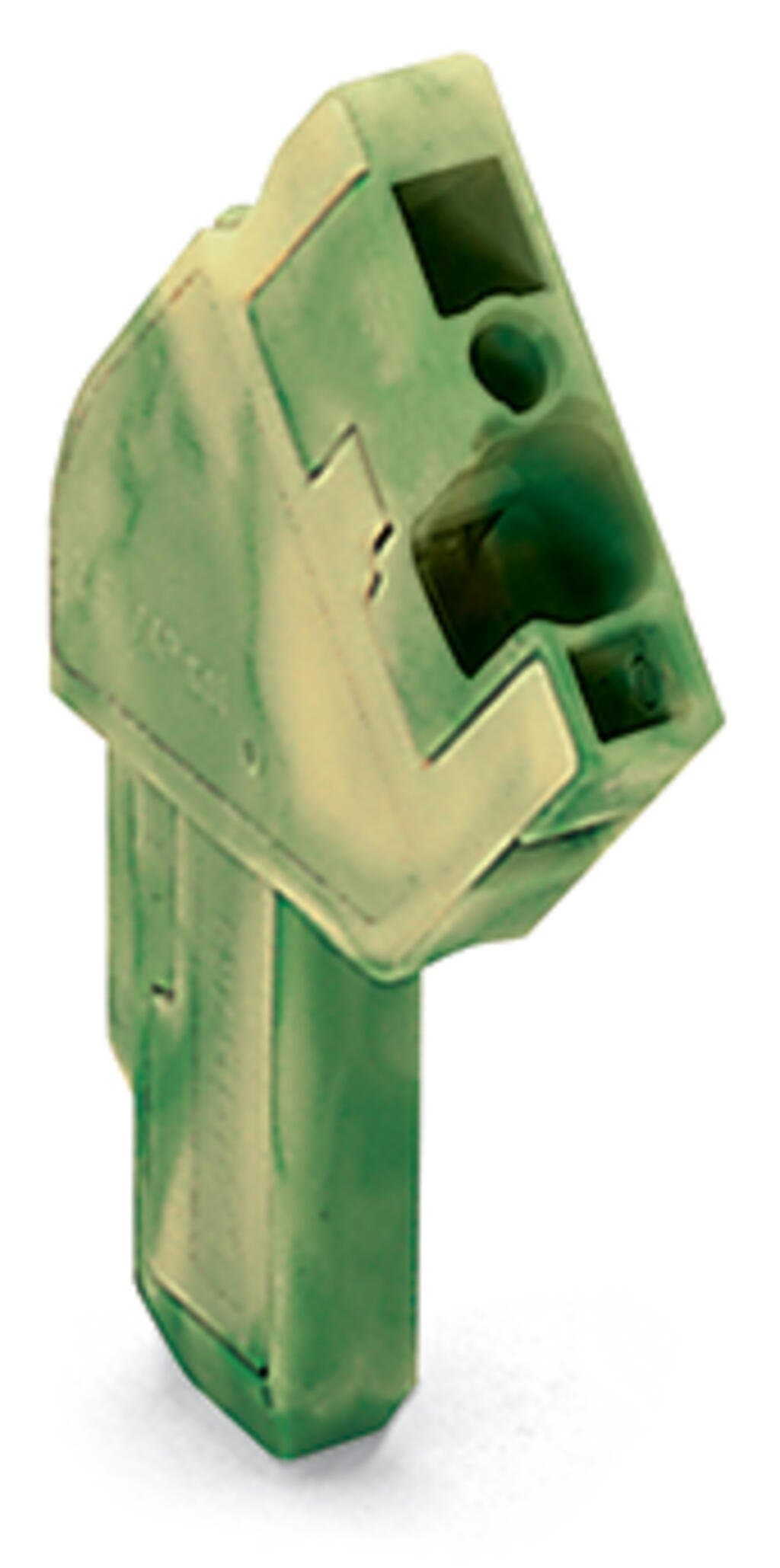

769-101/022-016
Key Features
- 1Secure Connections: Angled design with CAGE CLAMP technology for reliable conductor connections.
- 2Efficient Conductivity: 4 mm² conductor capacity with 5 mm pin spacing for optimal electrical flow.
- 3Ease of Use: Coding finger for easy identification and connection.
- 4Durability: High-quality construction for long-lasting performance in various environments.
- 5Compliance: Meets industry standards, including ROHS compliance for safe use in electrical circuits.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 1 |
| Total number of potentials | 1 | Width | 5?mm?/ 0.197?inches |
| Height | 37.1?mm?/ 1.461?inches | Depth | 26.5?mm?/ 1.043?inches |
| Module width | 5?mm?/ 0.197?inches | Variable coding | Yes |
| Direct ground contact to DIN-rail/drilled hole/housing | No | Marking level | Side marking |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Note (material data) | Information on material specifications can be found here |
| Color | green-yellow | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.045MJ | Halogen-free | Yes |
| Weight | 2.5g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918546348 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 61984 |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
| Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 1 |
| Wiring direction | Front-entry wiring | Conductor entry direction to mating direction | 45° |
Specifications may be subject to change without notice
