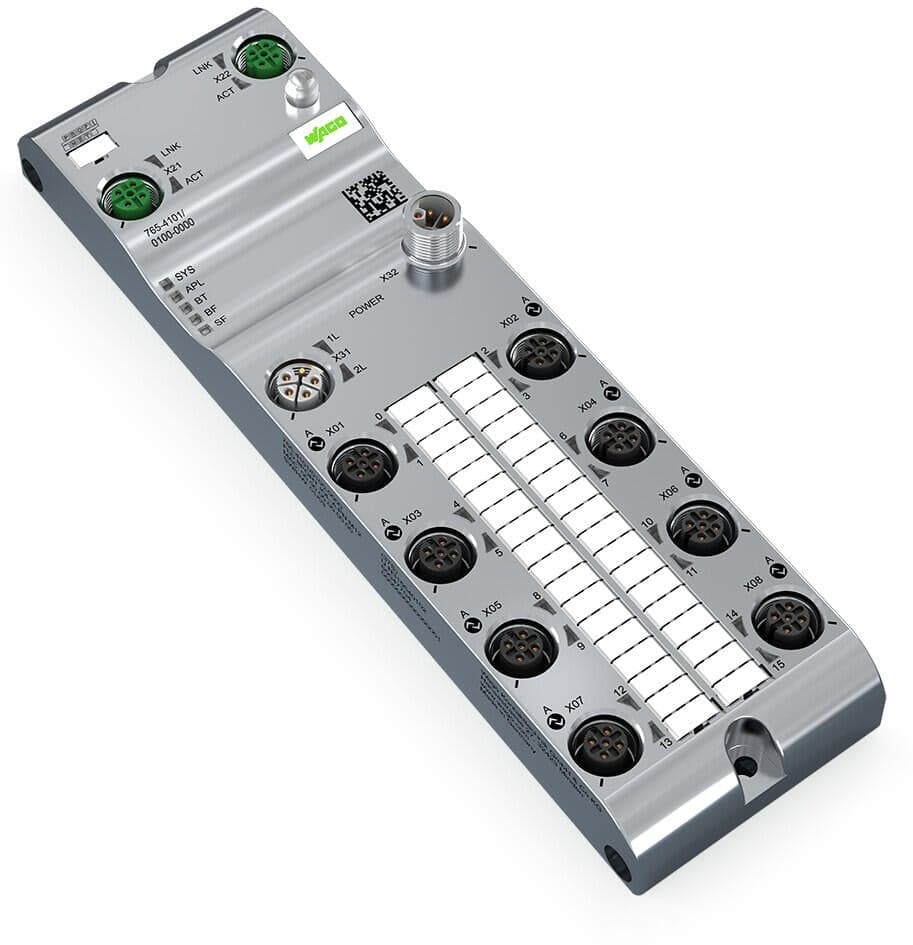

Product Model
765-4101/100-000
Key Features
- 18-Port IO Link Client Class A: Supports up to eight devices for efficient industrial automation.
- 2Profinet Compatibility: Seamlessly integrates with Profinet networks for enhanced connectivity.
- 316 Configurable DIO: Offers 16 digital input/output channels for flexible configuration.
- 4DC 24 V / 2.0 A Power: Operates on a reliable 24V DC power supply with 2A current.
- 58xM12 Connection: Features eight M12 connections for secure and reliable device connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 60?mm?/ 2.362?inches | Height | 30?mm?/ 1.181?inches |
| Depth | 210?mm?/ 8.268?inches | Weight | 610g |
| Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
| Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
| Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
| Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
| Relative humidity (without condensation) | 95% | Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 | EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 | ETIM 9.0 | EC001601 |
| ETIM 8.0 | EC001601 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143949996 |
| Customs tariff number | 8537109170 | CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | 3d1b5f75-0483-45fd-94ce-081697512ae4 |
| SCIP notification number (Belgium) | 2345134c-9018-4565-95d4-8989d408f3d5 | SCIP notification number (Bulgaria) | 3ebe2820-3366-4690-b9b3-41b90079f1b9 |
| SCIP notification number (Czech Republic) | 94b741cb-a59a-4c93-ab8e-fe235a561502 | SCIP notification number (Denmark) | 0adc9ac4-e60d-46c0-bfa9-6e30b0c06044 |
| SCIP notification number (Finland) | d26c4196-9345-490c-bc64-07e80b4d51b5 | SCIP notification number (France) | f1567d28-637b-4580-b962-7fc67b19afd7 |
| SCIP notification number (Germany) | ec77edca-13ab-40d1-b1c0-987ff3355111 | SCIP notification number (Hungary) | 2869872b-f535-42f4-847c-eceb43f0a0c2 |
| SCIP notification number (Italy) | f95be9a8-4689-407b-89d1-1a535a82b8bc | SCIP notification number (Netherlands) | 46e786b0-3e2d-435a-b6e6-33f69ba20460 |
| SCIP notification number (Poland) | 2bd9299e-30d5-4051-bc95-7c46764e5617 | SCIP notification number (Romania) | b8658276-5634-4d52-a5a9-4159c451ac9a |
| SCIP notification number (Sweden) | b3ad0cc5-fb1c-4cef-8923-368ed8406760 | Communications | PROFINET |
| Connection technology: communication/fieldbus | 2 x D-coded M12; 4-pole | Interface standard | 10BASE-T/100BASE-TX; potential-free |
| Autonegotiation; autocrossover | yes | PROFINET IO features | PROFINET IO device; 2-port switch, LLDP, MRP, SNMP |
| Parameter | Input filter | Diagnostics | Undervoltage; Overcurrent; Overload; Overtemperature |
| Device functions | Bluetooth? | Visualization | Android/iOS app |
| IO-Link master classification | Class A; V1.1 specification | Port-Modus | IO-Link: autoconfig, manual, tool-based |
| Cycle time | 400 μs (min.) | Operating mode | IO-Link master, DI or DO (adjustable for pin 4 per port); DI or DO (adjustable for pin 2 per port) |
| Number of digital inputs | 16 | Number of digital outputs | 16 |
| Connection technology: inputs / outputs | 8 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
| Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
| Output current (per channel) | 2 A (typ.) for DO | Supply current per port | 1L: 1 A for IO-Link; 4 A (max.) for DIO |
| Connection technology: supply | 2 x L-coded M12; 5-pole | Supply voltage | 24?VDC (18 … 31.2?V);?1L |
| Current consumption (max.) | 16000mA | Current consumption (note) | per supply line; overload- and short-circuit-protected |
| Reverse voltage protection | Yes |
