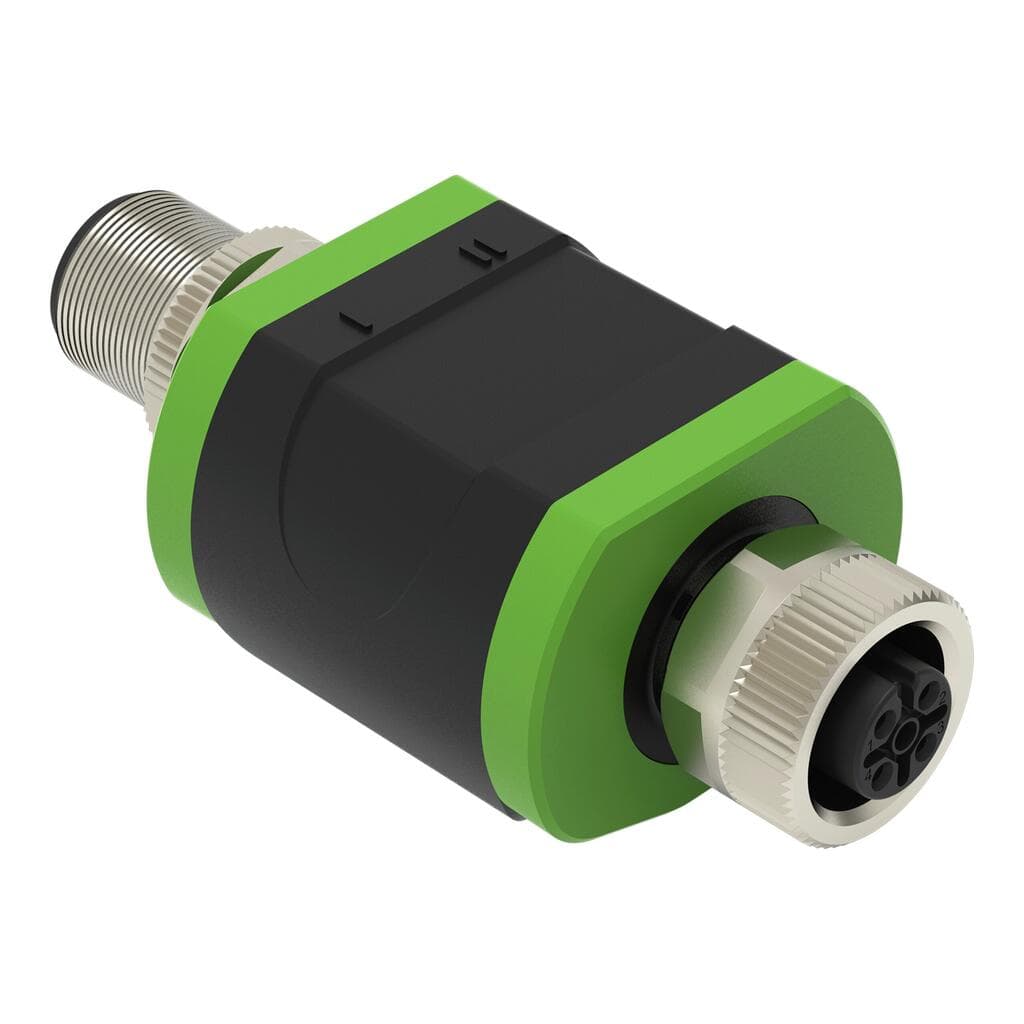

Product Model
765-2702/200-000
Key Features
- 1Compact and Economical Design: Ideal for modernizing brownfield systems with analog-to-IO-Link conversion.
- 2IP67 Protection: Durable and resistant to harsh environments, including salt water, salt spray mist, and direct sunlight.
- 3High Accuracy: Offers 0.25% accuracy at +25°C for precise signal conversion.
- 4IO-Link Compatibility: Direct access to process data and diagnostic data via IO-Link interface.
- 5Versatile Connectivity: Equipped with 5-pin A-coded M12 female connector for input and 4-pin A-coded M12 male connector for IO-Link.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Length of connection cables: 20 m | Connection technology: inputs / outputs | 1 x M12-A socket; 5-pole (inputs, double assignment); 1 x M12-A plug; 4-pole (IO-Link) |
| Width | 30 mm | Height | 63 mm |
| Depth | 24 mm | Weight | 92g |
| Housing material | PA | Ambient temperature (operation) | -25 … +70 °C |
| Ambient temperature (storage) | -25 … +70 °C | Protection type | IP67 |
| Operating altitude | 0 … 4000 m | Pollution degree | 2 |
| Conformity marking | CE; UKCA | MTTF | 504years |
| ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
| Packaging type | Box | Country of origin | DE |
| Customs tariff number | 85176200000 | RoHS Compliance Status | Compliant,No Exemption |
| Supply voltage | 24 VDC (18 … 30 V) | Current consumption (max.) | 380mA |
| Accuracy (+25 °C) | 0.25 % of the upper-range value | Indicators | Analog input: 2 x yellow LED; Power: 1 x green LED |
| Number of analog inputs | 2 | Input signal (V) | 0 … 10 V |
| Current carrying capacity | Total inputs (max. 200 mA) | Internal resistance | 100kΩ |
| Signal type (voltage) | 0 … 10 VDC | Communications | IO-Link Class A/B |
| Transmission modes | COM2 (38.4 kBaud) | IO-Link version | 1.1 |
| Process data | 2 x 16-bit IN (analog) | Cycle time | 4.6 ms (min.) |
| Parameterizable functions | Application-specific identifier, system identifier, location identifier, mean value filter |
Specifications may be subject to change without notice
