Product Model

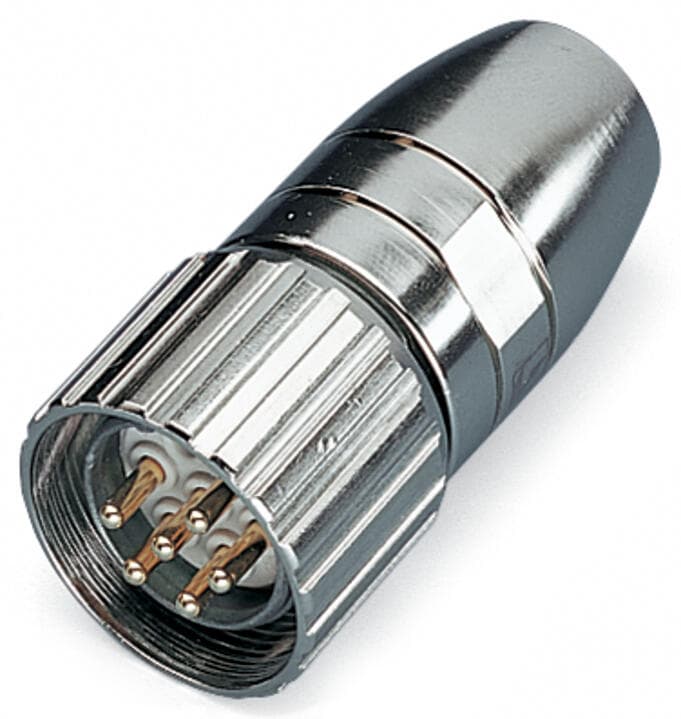

756-9601/060-000
Key Features
- 1High-reliability design ensures consistent performance in demanding environments.
- 2Versatile connectivity options for a wide range of industrial applications.
- 3Easy-to-use terminal blocks simplify installation and maintenance.
- 4Durable construction withstands harsh industrial conditions.
- 5Compact design saves space in tight installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | M23 plug | Number of poles | 6 |
| Cable connection direction to mating direction | 0° | Connection type 1 | Soldering technology |
| Solid conductor | 2.5?mm2 | Connectable sheathed cable diameter | 2 … 10.5?mm |
| Weight | 74.9g | Protection type | IP67 |
| Product Group | 23 (I/O passive and accessories) | eCl@ss 10.0 | 27-24-26-92 |
| eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
| ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4045454434786 |
| Customs tariff number | 8536694020 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
