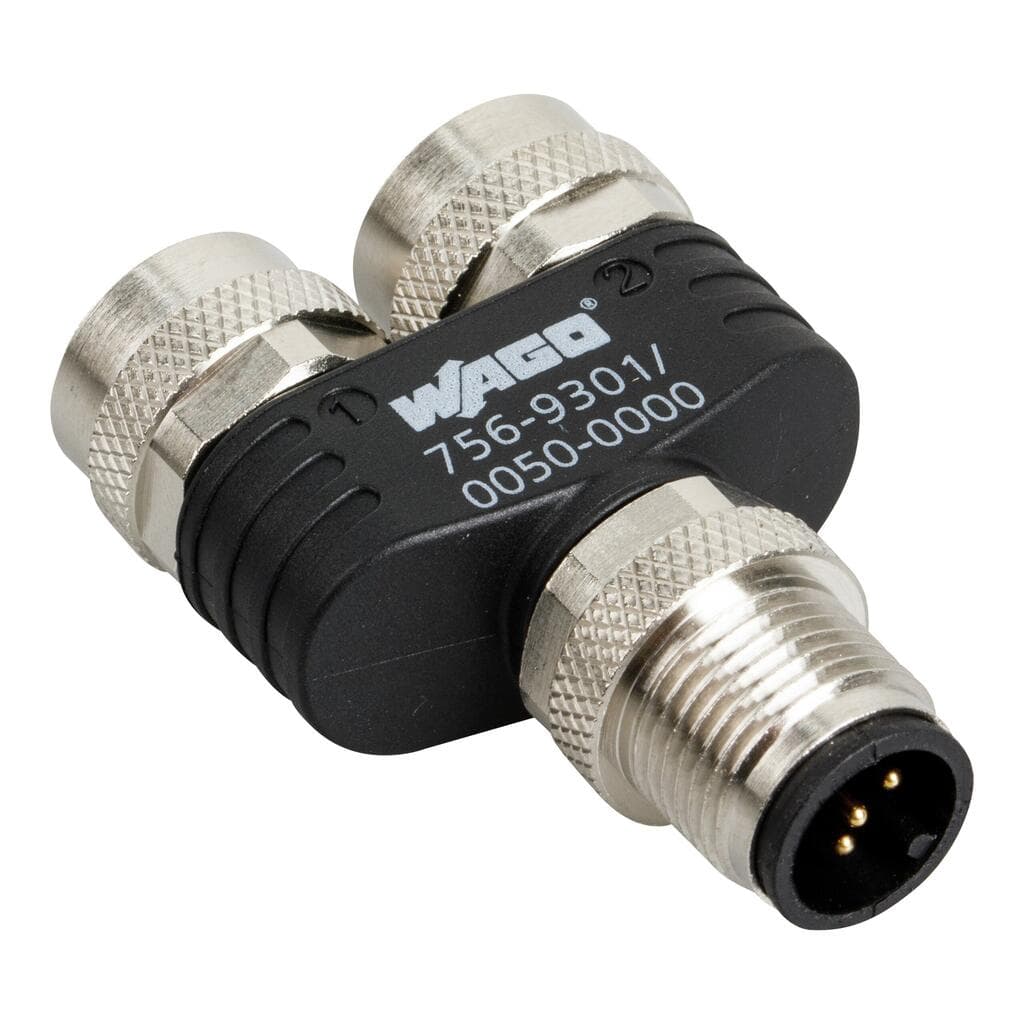

Product Model
756-9301/050-000
Key Features
- 1IP67 Protection: Durable and resistant to dust and water.
- 2High Insulation Resistance: 1000 MΩ ensures reliable electrical connections.
- 3M12 Socket Compatibility: Easy integration with pre-assembled cables.
- 45-Pole Configuration: Ideal for various automation and control network applications.
- 5RoHS Compliant: Environmentally friendly and compliant with EU regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4045454835637 | Customs tariff number | 8536694020 |
| RoHS Compliance Status | Compliant,No Exemption | Insulation resistance | 109Ω |
| Pollution degree | 3 | Protection type | IP67 |
| Note on protection type | in fully locked position | Note | M12/M12 distribution connectors must only be used in combination with pre-assembled cables! |
| Connection type | M12 Socket;?M12 Socket - M12 plug | Number of poles | 5 |
| Connector interface coding (cable/adapter) 1 1 | A-coded | Connector interface coding (cable/adapter) 1 2 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
Specifications may be subject to change without notice
