Product Model

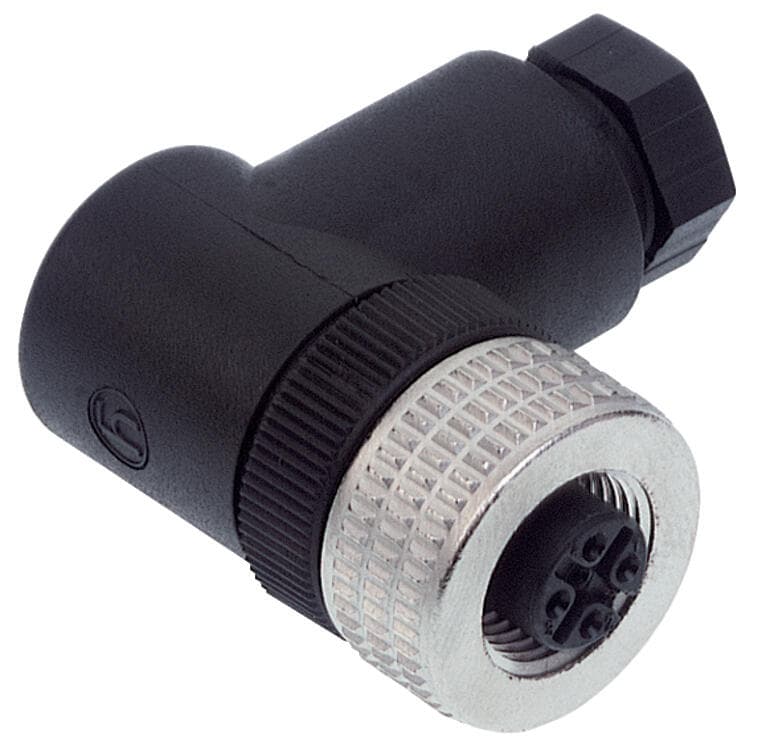

756-9214/040-000
Key Features
- 1High-reliability design for critical industrial applications.
- 2Efficient signal transmission with minimal latency.
- 3Easy installation and integration with existing systems.
- 4Compact and durable construction for harsh environments.
- 5Compatible with a wide range of industrial protocols.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | M12 socket | Number of poles | 4 |
| Cable connection direction to mating direction | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
| Contact resistance | ≤3 mΩ | Connection type 1 | Screw clamp technology |
| Solid conductor | 0.25 … 0.75?mm2 | Connectable sheathed cable diameter | 4 … 6?mm |
| Housing material | Polybutylene terephthalate (PBT) | Contact material | CuZn |
| Contact plating | Gold | Dichtungsmaterial | Sealing ring: neoprene |
| Mating cycles (max.) | 50 | Weight | 24g |
| Ambient temperature (operation) | -25 … +85 °C | Protection type | IP67 |
| Note on protection type | in locked state | Pollution degree | 3 |
| eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 5?(1)?pcs |
| Packaging type | box | Country of origin | HU |
| GTIN | 4045454383602 | Customs tariff number | 8536694020 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
