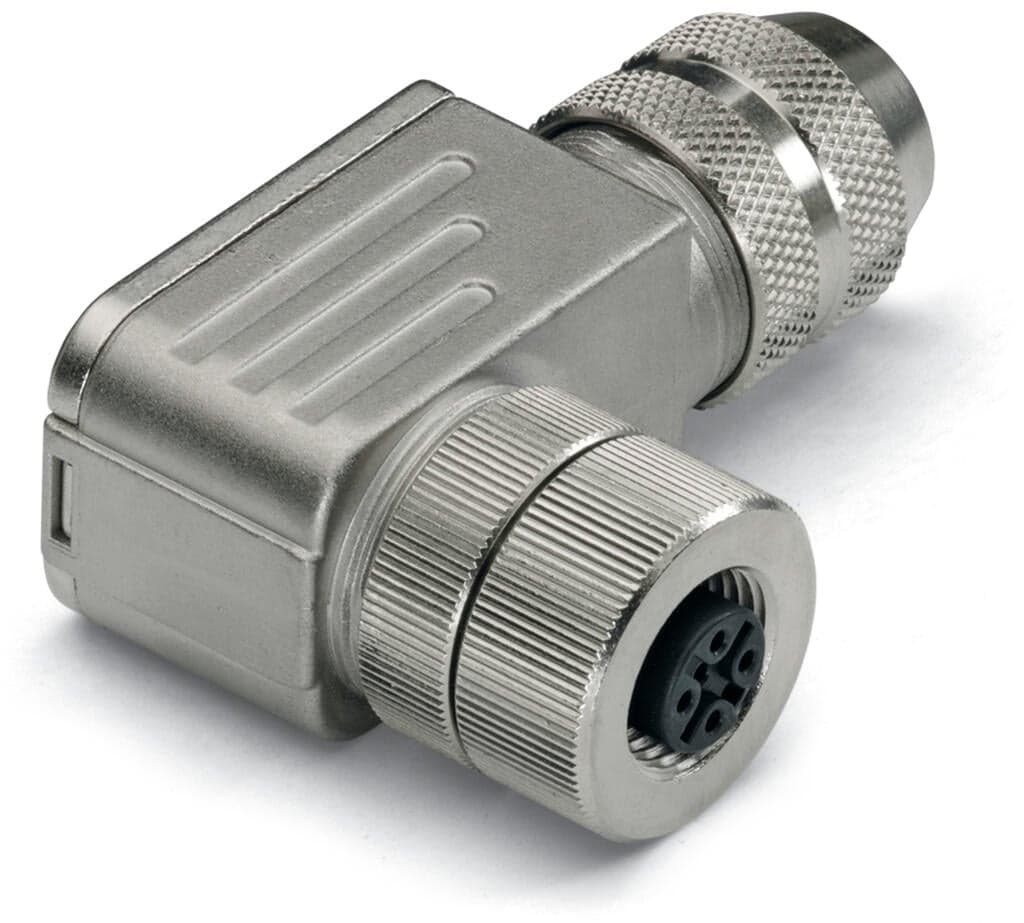

Product Model
756-9210/060-000
Key Features
- 1Angled Design: Right-angle M12 socket for easier cable routing.
- 2Configurable: A-coded interface for versatile connectivity options.
- 3Shielded Connection: Ensures reliable and protected electrical connections.
- 4IP67 Protection: Durable and resistant to dust and water.
- 55-Pole Configuration: Supports multiple connections in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | M12 socket | Number of poles | 5 |
| Connection point (shielded) | yes | Cable connection direction to mating direction | 90° |
| Connector interface coding (cable/adapter) 1 1 | A-coded | Contact resistance | ≤3 mΩ |
| Connection type 1 | Spring clamp technology | Solid conductor | 0.14 … 0.5?mm2 |
| Connectable sheathed cable diameter | 6 … 8?mm | Housing material | Die-cast zinc, nickel-plated |
| Contact material | CuZn | Contact plating | Gold |
| Dichtungsmaterial | Sealing ring: neoprene; O-ring: Viton | Mating cycles (max.) | 100 |
| Weight | 70g | Ambient temperature (operation) | -25 … +85 °C |
| Protection type | IP67 | Note on protection type | in locked state |
| Pollution degree | 3 | eCl@ss 10.0 | 27-24-26-92 |
| eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
| ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10 pcs | Packaging type | Bag |
| Country of origin | DE | GTIN | 4066966597349 |
| Customs tariff number | 8536694020 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
