Product Model
756-9115/030-000
Key Features

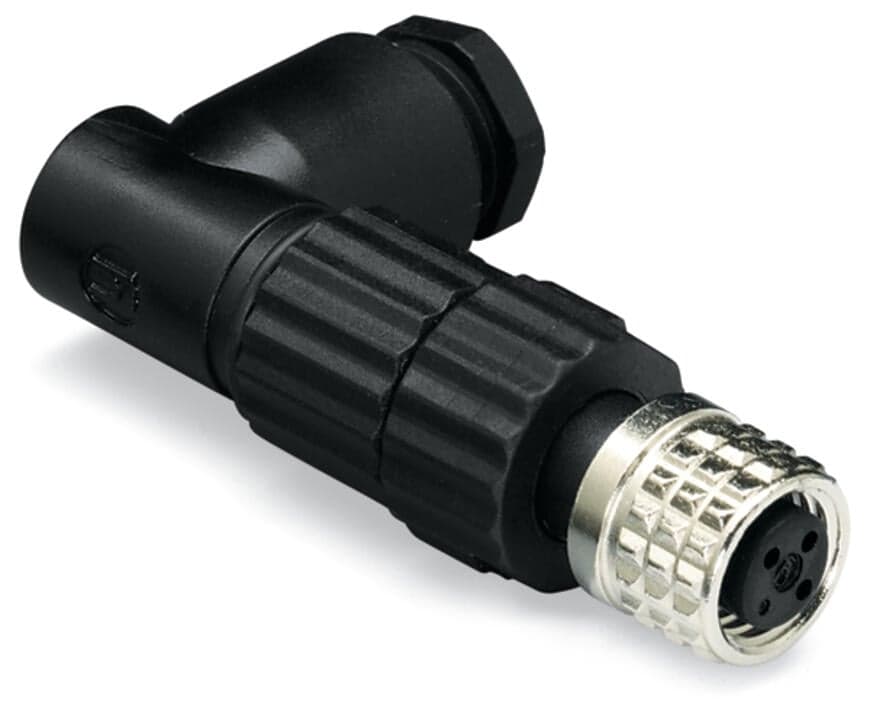

- 1Angled 3-pole M8 socket connector for secure connections.
- 2IP67 protection ensures durability in harsh environments.
- 3Fitted pluggable connector with IDC technology for quick setup.
- 4Suitable for various automation and electrical engineering applications.
- 5RoHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | M8 socket | Number of poles | 3 |
| Cable connection direction to mating direction | 90° | Connection type 1 | Pin penetration technology |
| Solid conductor | 0.14 … 0.34?mm2 | Connectable sheathed cable diameter | 4 … 5?mm |
| Weight | 14.3g | Protection type | IP67 |
| eCl@ss 10.0 | 27-24-26-92 | eCl@ss 9.0 | 27-24-26-92 |
| ETIM 9.0 | EC002584 | ETIM 8.0 | EC002584 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454983338 | Customs tariff number | 8536694020 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
