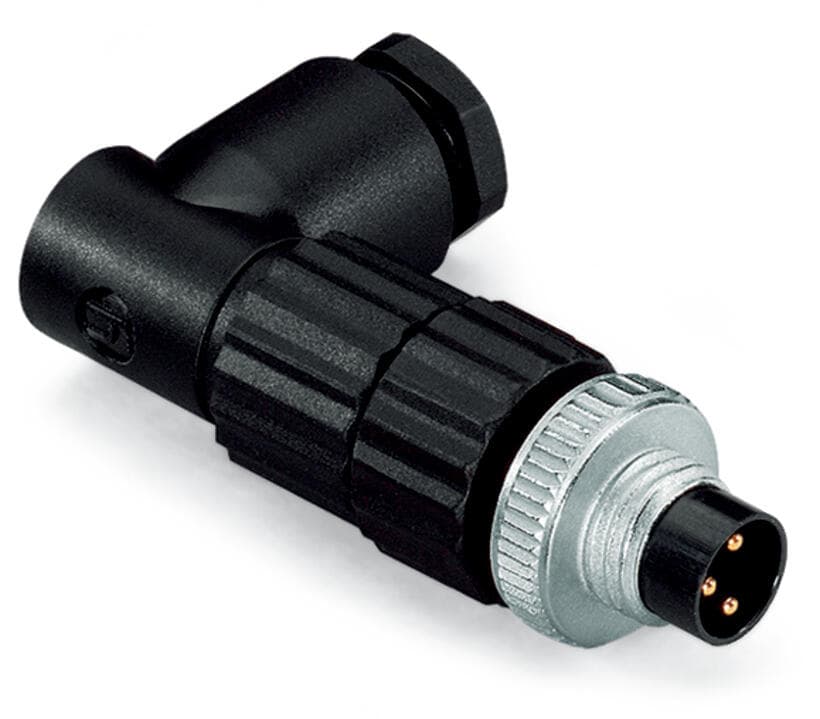

Product Model
756-9105/030-000
Key Features
- 1IP67 protection ensures reliable performance in harsh environments.
- 2Fitted pluggable connector with IDC technology for quick and secure connections.
- 3Suitable for sensor/actuator cables with a 90-degree cable connection direction.
- 4Made from robust materials for long-lasting performance.
- 5Meets ROHS compliance standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | M8 plug | Number of poles | 3 |
| Cable connection direction to mating direction | 90° | Connection type 1 | Pin penetration technology |
| Solid conductor | 0.14 … 0.34?mm2 | Connectable sheathed cable diameter | 4 … 5?mm |
| Weight | 14.5g | Protection type | IP67 |
| Fire load | 0.143MJ | eCl@ss 10.0 | 27-24-26-92 |
| eCl@ss 9.0 | 27-24-26-92 | ETIM 9.0 | EC002584 |
| ETIM 8.0 | EC002584 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 5?(1)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918977357 |
| Customs tariff number | 8536694020 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
