Product Model

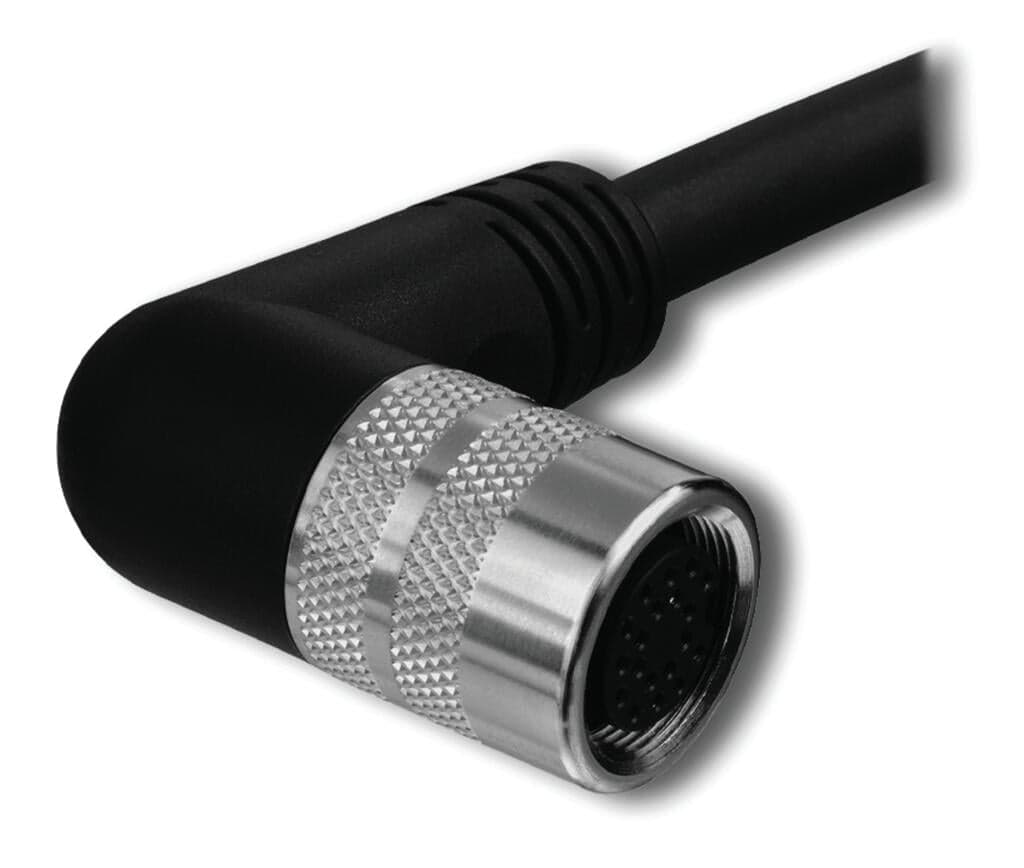

756-3206/140-150
Key Features
- 1High Amperage Rating: Supports up to 6 A with 0.75 mm² wire.
- 2Durable Construction: IP67 protection ensures reliability in harsh environments.
- 3Long Cable Length: Available in 15 meters for extended reach.
- 4Easy Connection: M16 socket with free end for straightforward connections.
- 5Wide Operating Range: Operates between -40°C to +90°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | M16 socket - free end | Number of poles | 14 |
| Cable connection direction to mating direction | 90° | Cable length | 15m |
| Operating voltage | 150?V | Operating current | 6 mm2 0,75 A |
| Rated surge voltage | 1.2?kV | Bending cycles | 2Mio. |
| Drag chain capability | yes | Weight | 1640g |
| Color | black | Ambient (operating) temperature (dynamic) | -30 … +90 °C |
| Ambient (operating) temperature (static) | -40 … +90 °C | Protection type | IP67 |
| eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4066966515077 | Customs tariff number | 8544429090 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
