Product Model

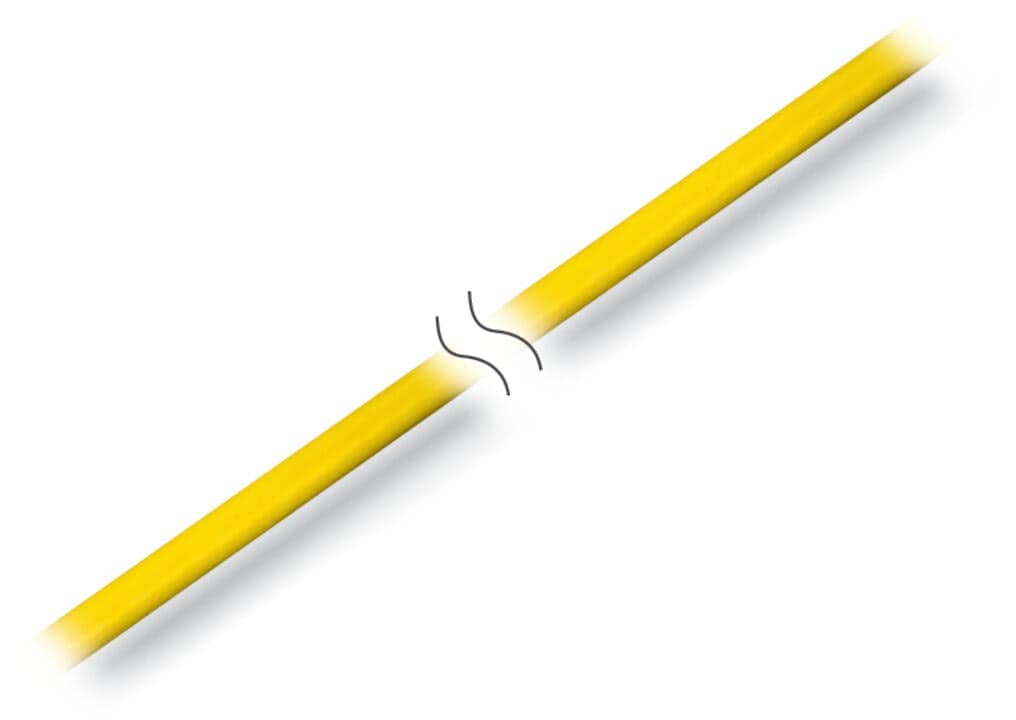

756-1300/000-1000
Key Features
- 1High-Quality Connectivity: WAGO's system bus cable ensures reliable and efficient connections in industrial and commercial settings.
- 25-Pole Configuration: Designed with a 5-pole configuration for versatile connectivity options.
- 3100 Meter Length: Available in a 100-meter length, suitable for extensive wiring needs.
- 4Compact and Durable: Compact design with durable materials for long-lasting performance.
- 5Easy Installation: Easy to install with push-in termination or lever-actuated options, saving time and cost.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection type | free end - free end | Number of poles | 5 |
| Cable length | 100m | PLC manufacturer | WAGO |
| Operating voltage | 125?V | Operating current | 4A |
| Rated surge voltage | 1.5 kV per IEC 61076-2-101 | Contact resistance | 10mΩ |
| Insulation resistance | ≥5 x 108Ω | Conductor resistance | ≤ 145 Ω/km |
| Bending radius | 5 x cable diameter (min.) | Type code | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded |
| Shield | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % | Conductor configuration | Bare copper wire (26/7 AWG) |
| Conductor insulation | Zell-PE; Core ?: 1.0 mm (max.) | Wire colors | white-blue, blue, white-orange, orange, white-green, green, white-brown, brown |
| Material properties of the connections | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) | Weight | 10g |
| Color | yellow | Ambient temperature (operation) | -25 … +60 °C |
| Protection type | IP67 | Pollution degree | 3/2 per IEC 60664-1 |
| eCl@ss 10.0 | 27-06-18-01 | eCl@ss 9.0 | 27-06-18-01 |
| ETIM 9.0 | EC003249 | ETIM 8.0 | EC003249 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454779450 | Customs tariff number | 8544429090 |
| End of Sale | 2024-05-01 | End of Production | 2024-05-15 |
| End of Delivery | 2024-06-01 | End of Service and Repair | 2025-06-01 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
