Product Model

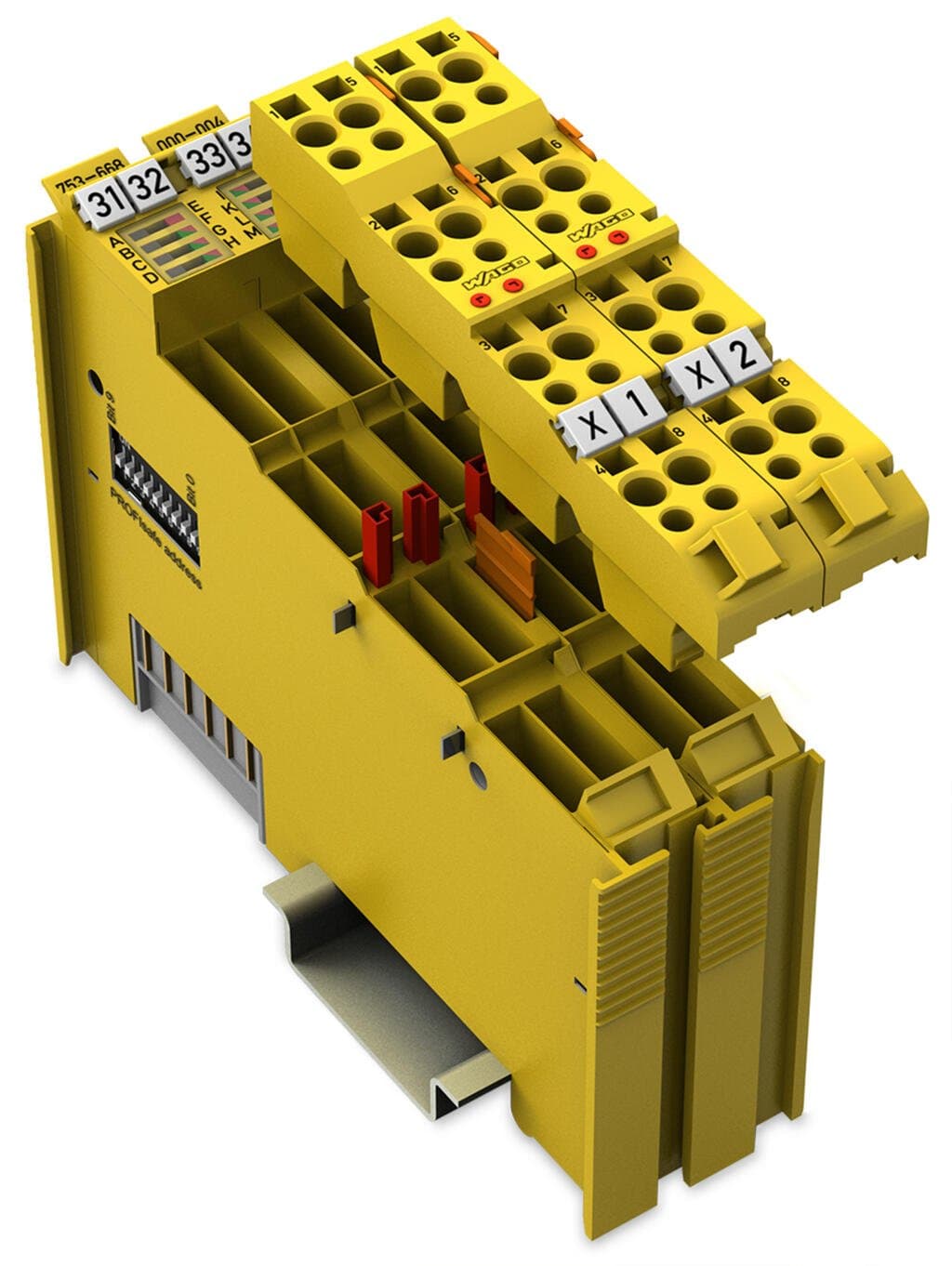

753-668/000-004
Key Features
- 1Fail-Safe Design: Ensures safe operation even in case of power loss.
- 2Differential Input: Enhances signal quality and noise immunity.
- 3PROFIsafe Compliance: Meets safety standards for industrial automation.
- 4Wide Input Range: Supports 0/4 … 20 mA for versatile applications.
- 5High Reliability: Built with robust components for long-term performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Pluggable connectors and coding fingers (753 Series) are not included. | Protocols | PROFIsafe V2.6 (PROFINET) and V2.4 (PROFIBUS, PROFINET) |
| Configuration options | PROFIsafe address adjustable via DIP switch or engineering software | Indicators | LED (E) red, LED (F-H) red/green: Diagnostics; LED (I-M) red/green: Input/output status |
| Device-specific | Common mode rejection: typ. 87 dB; Sampling frequency: 100 Hz, 60 Hz, 50 Hz, 10 Hz; Configurable; Interference frequency suppression: 38 dB at 50 Hz/60 Hz; Safety accuracy: 1.25 % of upper-range value (single-channel); 1.58 % of upper-range value (two-channel) | Number of Channels | 4 |
| Number of analog inputs | 4 | Signal type | Current |
| Signal type (current) | 0 … 20 mA; 4 … 20 mA | Sensor supply | Outputs L1 … L4 |
| Sensor connection | 4 x (2-wire, 3-wire, 4-wire) | Signal characteristics | Differential |
| Resolution [bit] | 16bits | Common-mode voltage (max.) | 60V |
| Load impedance | 300 Ω | Measurement error, reference temperature | 25°C |
| Measurement error, deviation max (upper-range value) ≤± | 0.05% | Output current per channel | 1.5A |
| Output current (module) | 1.5A | Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 120mA | Supply voltage (field) | 24 VDC, SELV/PELV (-15 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Current consumption, field supply (module with no external load) | 40mA | Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
| Isolation | 500 V system/field | Achievable safety classes | SIL 3; Category 4, PLe (two-channel); SIL 2; Category 2; PLd (one-channel) |
| Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 | Connection technology: inputs / outputs | 16 x CAGE CLAMP? |
| Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
| Width | 24 mm / 0.945 inches | Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches | Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
| Mounting type | DIN-35 rail | ETIM 9.0 | EC001596 |
| ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
| Customs tariff number | 8538901000 |
Specifications may be subject to change without notice
