Product Model

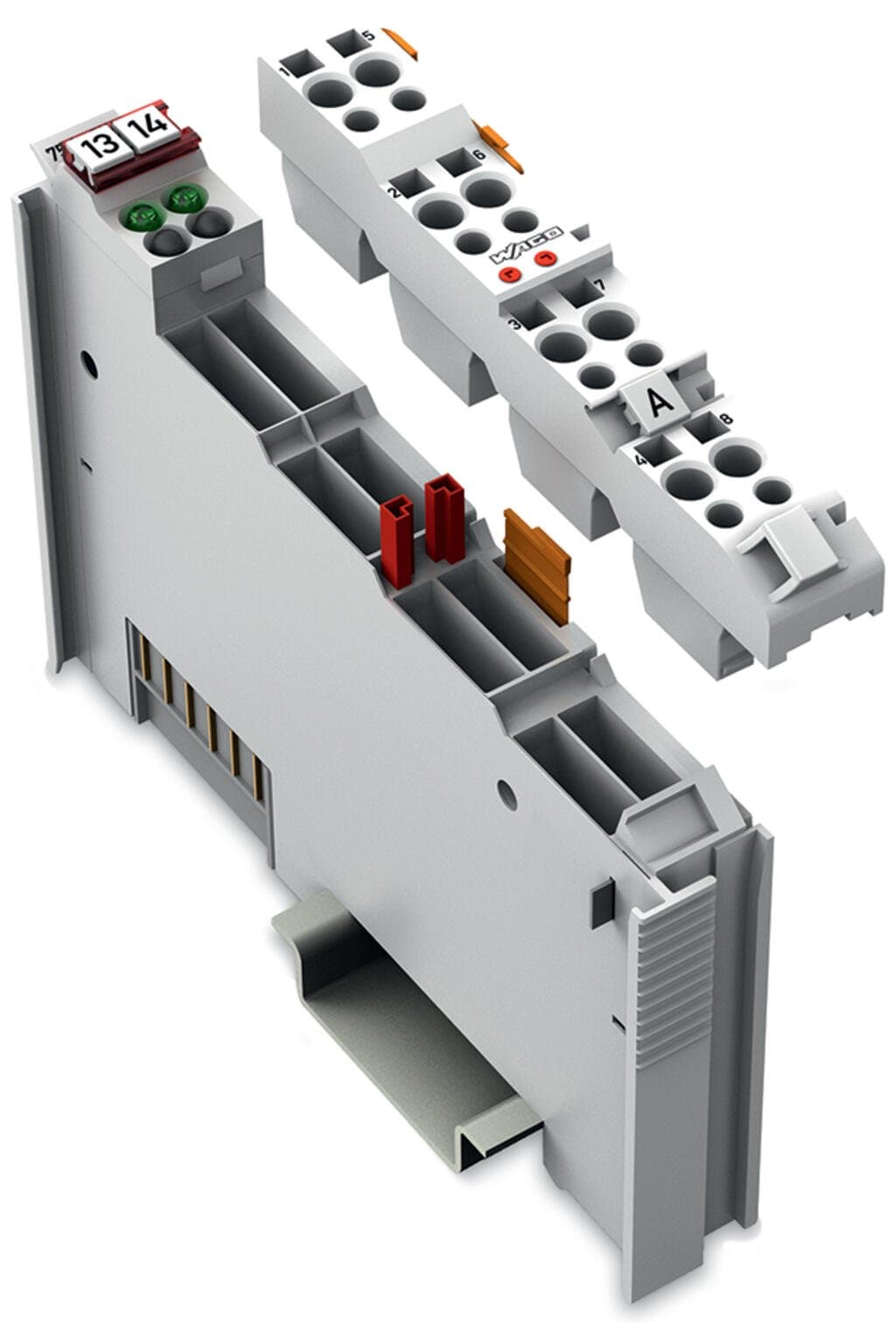

753-513
Key Features
- 1Marine Certifications: Meets ABS, BV, DNV, GL, KR, LR, NKK, PRS, and RINA marine application standards.
- 2High Switching Voltage: Supports 230 V AC and 30 V DC isolated outputs with 2 make contacts.
- 3Robust Connectivity: Utilizes CAGE CLAMP connections for secure and reliable wiring.
- 4Reliable Operation: Offers a mechanical life of 2 x 10^7 switching operations and an electrical life of 3 x 10^5 operations.
- 5Compact Design: Designed for DIN-rail mounting with dimensions of 12 mm x 73 mm x 100 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of digital outputs | 2 |
| Number of Channels | 2 | Signal type | Digital |
| Actuator connection | 2 x (1-wire) | Output circuit design | 2 make contacts |
| Output characteristic | potential-free | Pull-in time (max.) | 10ms |
| Drop-out time (max.) | 10ms | Bounce time (typ.) | 1.2ms |
| Switching frequency (max.) | 0.5 Hz; Nominal load | Switching voltage (max.) | 250 VAC, 30 VDC |
| Switching current (max.) | 2A | Switching voltage (min.) | 5V |
| Switching current (min.) | 10mA | Switching power | 500 VA / 60 W; cos ? max. = 0.4; L/R max. = 7 ms |
| Electrical switching operations (min.) (at max. resistive load) | 300 x 103 switching operations | Mechanical switching operations (min.) (at max. resistive load) | 20 x 10? switching operations |
| Output data width (internal) max. | 2bits | Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 100mA | Supply voltage (field) | Transmission of ground potential via power jumper contact |
| Isolation | 1500 V (system/field) | Indicators | LED (A, C) green: Status relay 1, relay 2 |
| Number of incoming power jumper contacts | 1 | Number of outgoing power jumper contacts | 1 |
| Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
| Connection type 1 | Inputs/outputs | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
| Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches | Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
| Mounting type | DIN-35 rail | Pluggable connector | pluggable |
| Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.242MJ | Weight | 44g |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
| Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-04 | eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
| Packaging type | Box | Country of origin | DE |
| Customs tariff number | 8537109170 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
