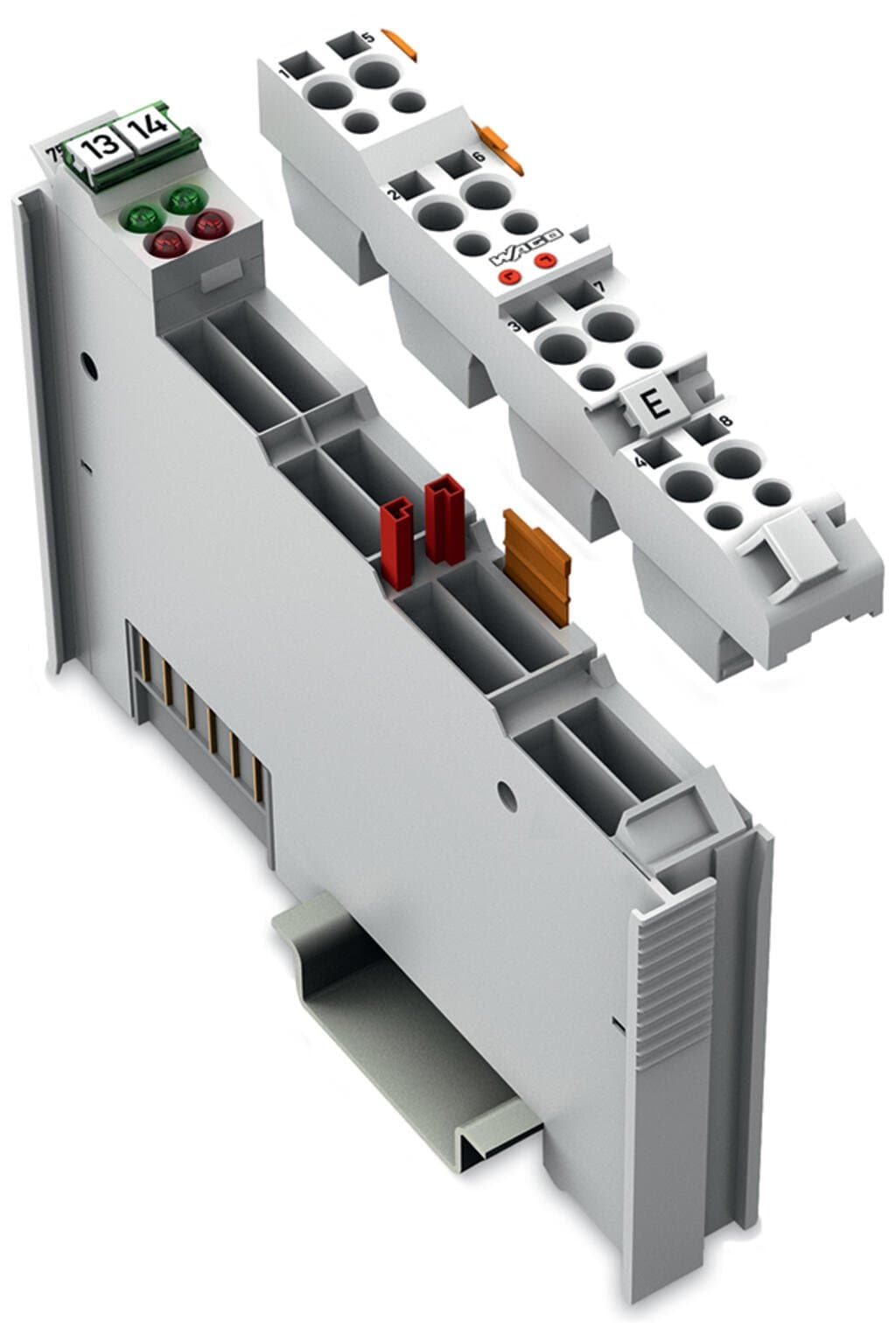

Product Model
753-483
Key Features
- 1Time-Synchronized Acquisition: Acquire measured values in real-time with both inputs synchronized.
- 214-Bit Resolution: High-resolution analog inputs for precise signal processing.
- 3Differential Inputs: Handle differential signals with a measuring range of 0-30VDC.
- 4Compact Design: Mounts on DIN-35 rail with a compact width of 12mm.
- 5IP20 Protection: Ensures reliable operation in harsh industrial environments with IP20 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of analog inputs | 2 |
| Number of Channels | 2 | Signal type | Voltage |
| Signal type (voltage) | 0 … 30?VDC | Sensor connection | 2 x (2-wire) |
| Input filter | Low pass (1st order), fG= 5?kHz | Signal characteristics | Differential |
| Resolution [bit] | 14bits | Operating mode | Continuously sampling (default) |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Protective device | RC circuit |
| Admissible continuous overload | 60V | Crosstalk attenuation | 80dB |
| Monotonicity without error code | yes | Internal resistance | 1000kΩ |
| Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.05% |
| Measurement error over entire temperature range | ≤ 0.4 % | Temperature error max. (upper-range value) ≤± | 0.01%/K |
| Sampling duration | 5μs | Sampling delay (channel/channel) | 1μs |
| Sampling delay (module) | 1ms | Sampling repetition time | 1ms |
| Measurement range overflow/underflow | Status byte and LED | Measured value acquisition | Time synchronous within the module |
| Value of the least significant bit (LSB) | 1.8 mV | Conversion method | SAR (Successive Approximation Register) |
| Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 80mA |
| Isolation | 500?V system/field or channel/channel | Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 |
| Connection technology: inputs / outputs | 6 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 12?mm?/ 0.472?inches |
| Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
| Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
| Pluggable connector | Pluggable | Color | light gray |
| Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.882MJ |
| Weight | 42g | Conformity marking | CE |
| Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
| Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
| ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454478414 |
| Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | f2410bc5-358d-4674-b04c-d002d6fb7719 |
| SCIP notification number (Belgium) | dfa55121-d6e2-46fb-9d3a-96f108cf7c90 | SCIP notification number (Bulgaria) | 3682acdc-472c-43ba-aa9a-356cd0b3cccd |
| SCIP notification number (Czech Republic) | df07811f-a4cc-4db6-9455-91f17606f7bd | SCIP notification number (Denmark) | 45962ff3-dc9b-4819-8b16-2c8bc444a6c7 |
| SCIP notification number (Finland) | e83e3ac3-75c2-4dfe-b102-3ca293a244b4 | SCIP notification number (France) | b5017916-da8a-46ad-98a7-424a5b61fcf3 |
| SCIP notification number (Germany) | efd64518-52ae-48a0-9173-86d45c21e27f | SCIP notification number (Hungary) | 2c2734f4-0773-4dce-b20f-5d82239ea8c3 |
| SCIP notification number (Italy) | cd3e7bf8-f79c-4aa9-93de-c0449e2372a5 | SCIP notification number (Netherlands) | ff56b04b-50b4-4087-91ef-37c872804790 |
| SCIP notification number (Poland) | ea2991ad-9dbf-42c6-b321-8e70b8315418 | SCIP notification number (Romania) | ab864023-963f-47ff-a561-65519437fb01 |
| SCIP notification number (Sweden) | 71ae3847-36b1-49c0-a7e3-e119c655f387 |
Specifications may be subject to change without notice
