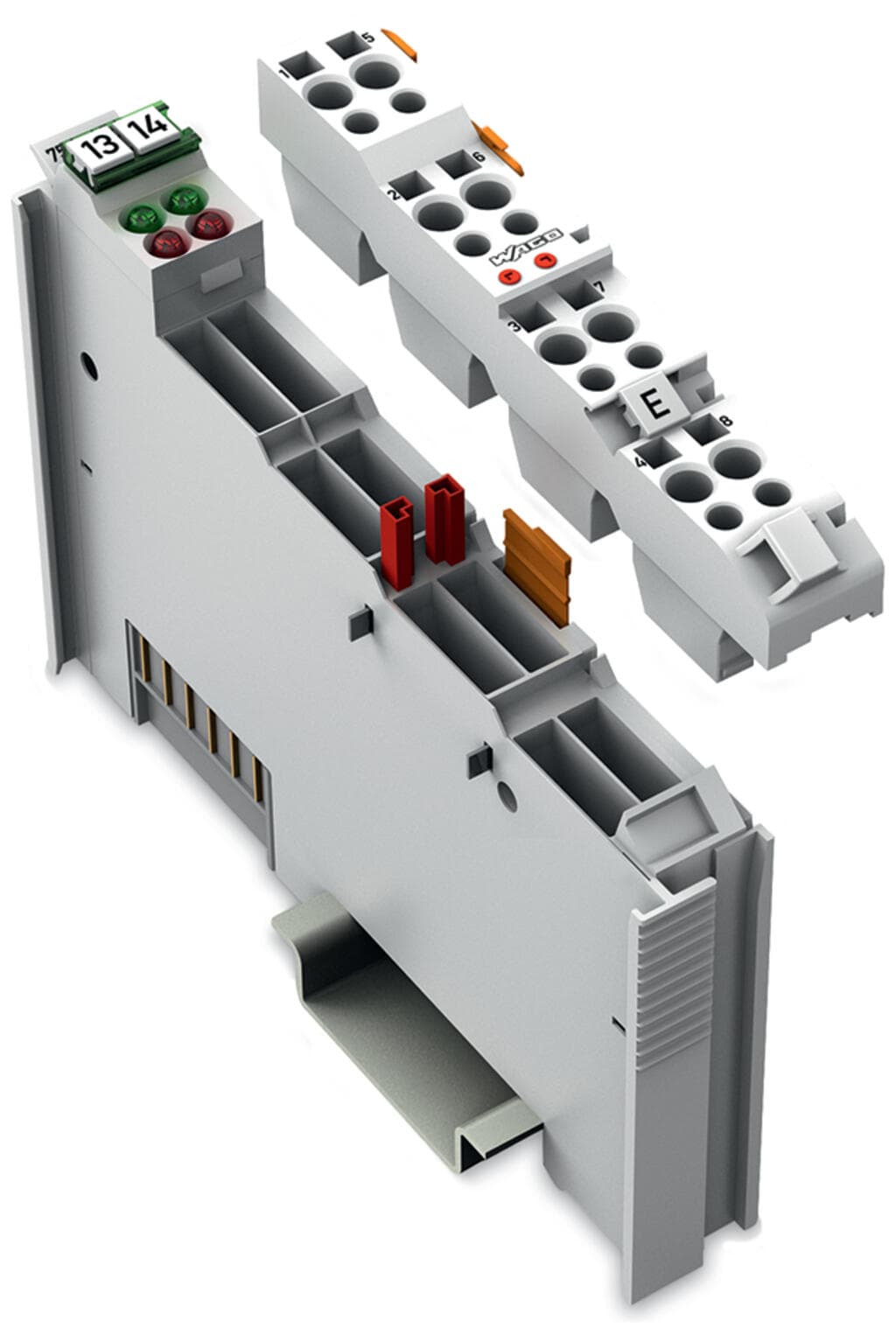

Product Model
753-477
Key Features
- 116-bit resolution for precise signal processing.
- 2Enhances noise immunity and signal quality.
- 3Supports 0-10V AC/DC signals for versatile applications.
- 4Light gray color, ideal for space-constrained installations.
- 5Field supply voltage of 24V DC with ±25% tolerance for robust performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of analog inputs | 2 |
| Number of Channels | 2 | Signal type | Voltage |
| Signal type (voltage) | 0 … 10?VAC/DC | Sensor connection | 2 x (2-wire) |
| Signal characteristics | Differential | Resolution [bit] | 15bits |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Internal resistance | 120kΩ |
| Conversion time (typ. ≤) | 200ms | Measurement error, reference temperature | 25°C |
| Measurement error, deviation max (upper-range value) ≤± | 0.1% | Measurement error over entire temperature range | ≤ ±0.6 % |
| Temperature coefficient | < ±110 ppm/K of greatest measurement range | Supply voltage (system) | 5?VDC;?via data contacts |
| Current consumption (5 V system supply) | 80mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Process data | 0.0 V corresponds to 0x0000; 20 VDC corresponds to 0x4E20 | Isolation | 500?V system/field or channel/channel |
| Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 | Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 6 x CAGE CLAMP? |
| Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
| Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
| Mounting type | DIN-35 rail | Pluggable connector | Pluggable |
| Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.155MJ | Weight | 41.1g |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
| Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454504656 | Customs tariff number | 8538901000 |
| CAS-No. | 25550-51-0 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
| RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | d241b628-7bc4-44f2-9227-e02049fa0e4c |
| SCIP notification number (Belgium) | 9869f7f6-e7b9-40a9-abd1-9a12dd73ca67 | SCIP notification number (Bulgaria) | e3617d87-82c6-4cc9-89ec-376e84df3697 |
| SCIP notification number (Czech Republic) | 97ffa227-16cd-4283-b68f-1ab275dde78f | SCIP notification number (Denmark) | c2d997fb-5a07-4c70-a500-e3e5da23849f |
| SCIP notification number (Finland) | 6472b864-e0e4-4a54-89b9-62c345c66c09 | SCIP notification number (France) | d6234f01-d2e4-4f6d-8667-1c2e803da589 |
| SCIP notification number (Germany) | fa3c5c15-9ee3-4a30-8862-3b48852e2e2a | SCIP notification number (Hungary) | fb8488cd-a41c-445d-aac1-86a52d690ac3 |
| SCIP notification number (Italy) | 993aa28a-0b14-4c8f-9b22-fb9c76ecdd38 | SCIP notification number (Netherlands) | 5ebe62bd-8985-4d72-8f27-72ba2dc13946 |
| SCIP notification number (Poland) | d59442a9-69b2-42c0-b1d4-815f2954c3c6 | SCIP notification number (Romania) | f752fda9-e9f6-45d6-9189-95659303ab14 |
| SCIP notification number (Sweden) | 7d38fe5b-cd9d-4ee9-8d43-21951fa20249 |
Specifications may be subject to change without notice
