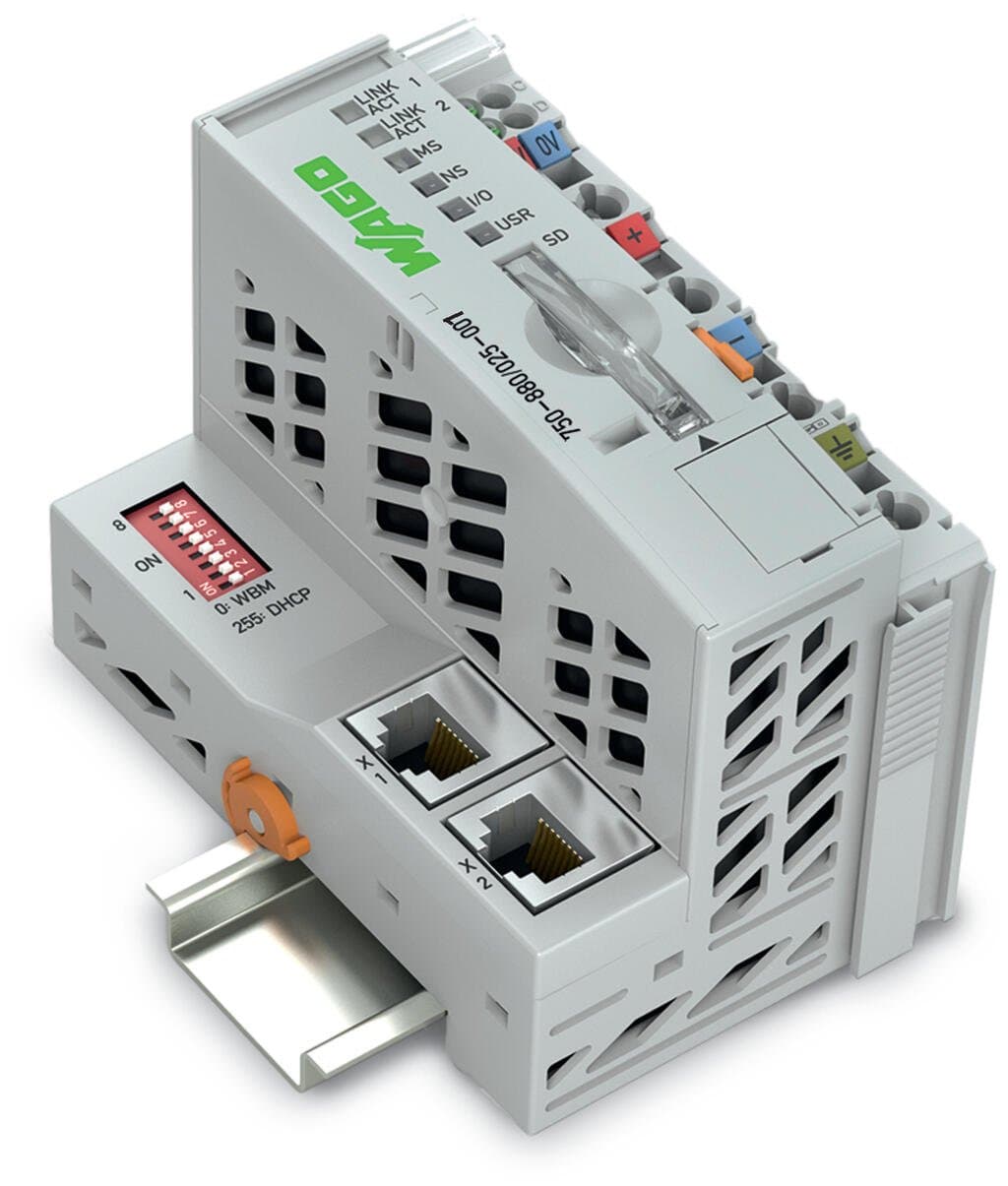

Product Model
750-880/025-001
Key Features
- 1Advanced Ethernet Connectivity: Seamlessly integrate with modern networks using Ethernet technology.
- 2SD Card Slot: Enhance data storage and management capabilities with an onboard SD card slot.
- 3Telecontrol Technology: Utilize advanced telecontrol features for efficient remote monitoring and control.
- 4Extended Temperature Range: Operate in a wide range of temperatures, ensuring reliability in various environments.
- 5DIN Rail Mountable: Conveniently mount on DIN rails for easy installation in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Communications | EtherNet/IPTM | ETHERNET protocols | HTTP |
| Telecontrol protocols | IEC 60870-5-101/-103/-104 | Visualization | Web-Visu |
| CPU | 32 bits | Programming languages per IEC 61131-3 | Instruction List (IL) |
| Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) | Configuration options | WAGO-I/O-CHECK |
| Transmission rate | 10/100?Mbit/s | Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length |
| Transmission performance | Class D per EN 50173 | Program memory | 1024?KB |
| Data memory | 1024?KB | Non-volatile software memory | 32Kbytes |
| Type of memory card | SD card | Memory card slot | Push-push mechanism; Cover lid (sealable) |
| Number of modules per node (max.) | 250 | Number of modules without a bus extension (max.) | 64 |
| Input and output process image (fieldbus) max. | 1020?words/1020?words | Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply |
| Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector (CAGE CLAMP?connection) | Input current (typ.) at nominal load (24?V) | 500mA |
| Power supply efficiency (typ.) at nominal load (24 V) | 90% | Current consumption (5 V system supply) | 450mA |
| Total current (system supply) | 1,700mA | Supply voltage (field) | 24?VDC?(-25 … +30?%);?via power jumper contacts |
| Current carrying capacity (power jumper contacts) | 10A | Number of outgoing power jumper contacts | 3 |
| Isolation | 500?V system/field | Connection technology: communication/fieldbus | EtherNet/IPTM: 2 x RJ-45; Modbus (TCP, UDP): 2 x RJ-45; Telecontrol protocol IEC 60870-5-101/-103: 1 x Serial interface via I/O module; Telecontrol protocol IEC 60870-5-104: 1 x RJ-45; Telecontrol protocol IEC 61850: 1 x RJ-45; Telecontrol protocol DNP3: 1 x RJ-45 |
| Connection technology: system supply | 2 x CAGE CLAMP? | Connection technology: field supply | 6 x CAGE CLAMP? |
| Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 61.5?mm?/ 2.421?inches |
| Height | 100?mm?/ 3.937?inches | Depth | 71.9?mm?/ 2.831?inches |
| Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches | Weight | 161.4g |
| Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
| Conformity marking | CE | Ambient temperature (operation) | -20 … +60 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
| Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ?20 ?to +60 °C (except for wind-driven precipitation, water and ice formation) |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Mounting type | DIN-35 rail |
| Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 2.482MJ |
| Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
| Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-07 |
| eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
| ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821466475 |
| Customs tariff number | 8537109160 | End of Sale | 2022-01-31 |
| End of Production | 2023-02-28 | End of Delivery | 2023-03-31 |
| End of Service and Repair | 2026-12-31 | CAS-No. | 12060-00-3 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Bulgaria) | 24f50c31-0878-4cce-b582-b920f83ce146 |
| SCIP notification number (Czech Republic) | 64da4e83-8e48-4302-8fcc-9b1a6d32044b |
Specifications may be subject to change without notice
