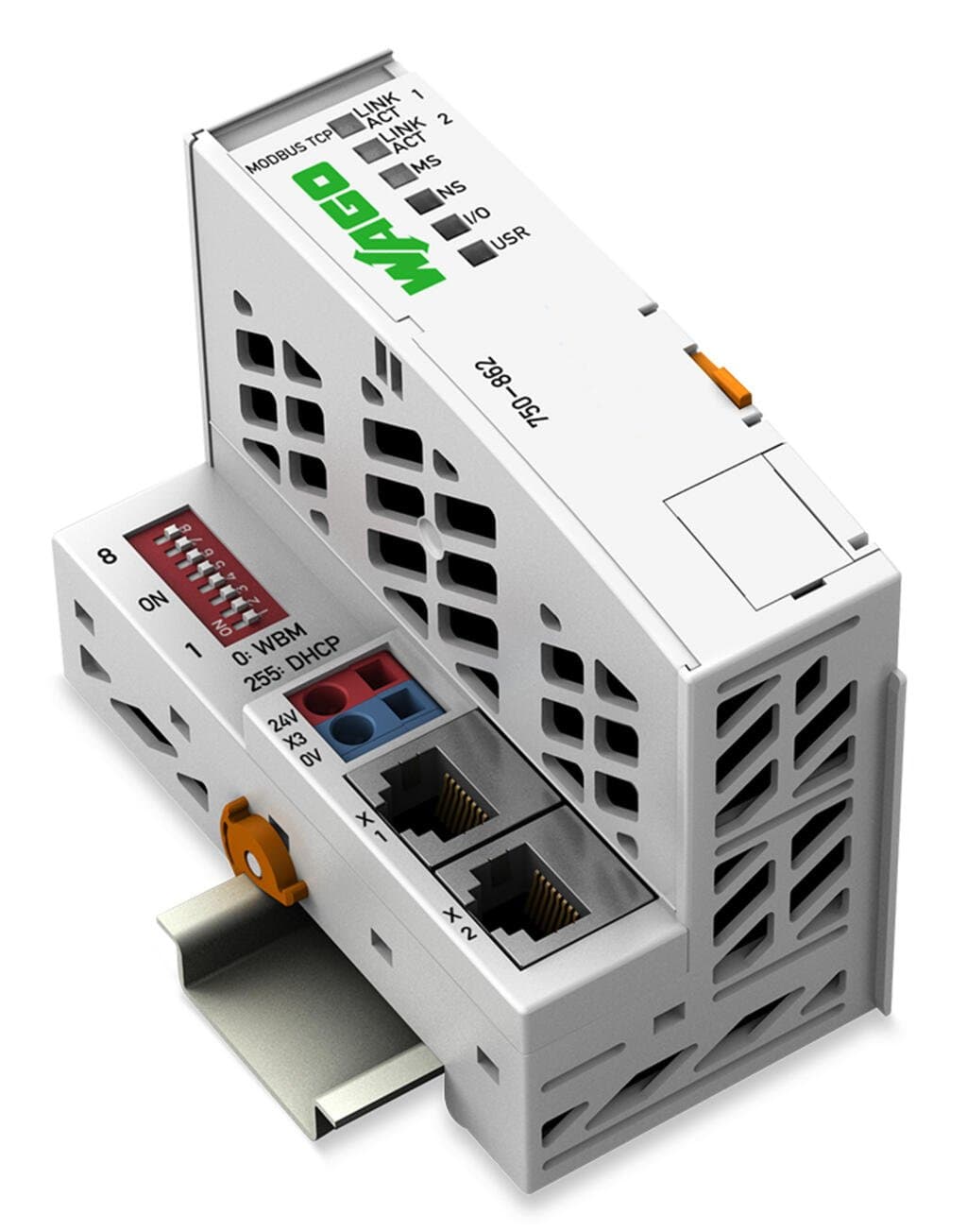

Product Model
750-862
Key Features
- 1Modbus TCP and Ethernet Communication: Supports Modbus TCP and Ethernet protocols for seamless network integration.
- 2High Connectivity: Handles up to 250 connections per node and 64 field devices.
- 3DIN Rail Mounting: Designed for easy installation on DIN rail, perfect for industrial automation.
- 4IP20 Protection: Offers robust protection against dust and water, ensuring reliable operation in various environments.
- 5Versatile Power Supply: Operates on a supply voltage of 18-31.2Vdc (24Vdc nominal) with high efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Communications | Modbus (TCP, UDP) | ETHERNET protocols | HTTP(S) |
| Visualization | Web server | CPU | 32 bits |
| Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | WAGO-I/O-PROV2.3 (based on CODESYS V2.3) |
| Configuration options | WAGO-I/O-CHECK | Transmission rate | 10/100?Mbit/s |
| Transmission medium (communication/fieldbus) | Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Transmission performance | Class D per EN 50173 |
| Program memory | 2?MB | Data memory | 2?MB |
| Non-volatile software memory | 16Kbytes | Number of modules per node (max.) | 250 |
| Number of modules without a bus extension (max.) | 64 | Input and output process image (fieldbus) max. | 1020?words/1020?words |
| Indicators | LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user | Supply voltage (system) | 24?VDC (-25 … +30?%);?via pluggable connector |
| Input current (typ.) at nominal load (24?V) | 300mA | Power supply efficiency (typ.) at nominal load (24 V) | 90% |
| Current consumption (5 V system supply) | 390mA | Total current (system supply) | 700mA |
| Isolation | 500?V system/field | Connection technology: communication/fieldbus | Modbus (TCP, UDP):?2 x RJ-45 |
| Connection technology: system supply | 2 x CAGE CLAMP? | Connection type 1 | System supply |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
| Width | 49.5?mm?/ 1.949?inches | Height | 96.8?mm?/ 3.811?inches |
| Depth | 71.9?mm?/ 2.831?inches | Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches |
| Weight | 105.3g | Housing material | Polycarbonate; Polyamide 6.6 |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -25 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
| Relative humidity (without condensation) | 95% | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Mounting type | DIN-35 rail | Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Fire load | 1.439MJ | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-07 |
| eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC000236 |
| ETIM 8.0 | EC000236 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143821308 |
| Customs tariff number | 8537109160 | CAS-No. | 1303-86-2 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | 2dcc85cb-4e9d-4f3d-a623-6fac6d4658d1 |
| SCIP notification number (Belgium) | b98a1538-65b5-4bef-9e72-482d35b1880d | SCIP notification number (Bulgaria) | b6759e5e-c25e-446d-ab1e-6bd6f9b5c824 |
| SCIP notification number (Czech Republic) | 118f3cdc-a442-4449-bc3e-119c0c09174c | SCIP notification number (Denmark) | afba159a-819c-468e-af38-c99d445051cf |
| SCIP notification number (Finland) | b41b6378-62be-4475-aa76-c15922447133 | SCIP notification number (France) | e394e88a-0014-4696-899f-c9ce50c8e80a |
| SCIP notification number (Germany) | 29fdd93d-d36e-40da-ac43-c368cbbd6396 | SCIP notification number (Hungary) | c05d8ab5-409b-4d1d-885a-b3388083c962 |
| SCIP notification number (Italy) | e71f745a-d4b0-430e-a6f7-ebe06284c74b | SCIP notification number (Netherlands) | fca888c0-10ed-4e68-94b5-f2e1c1ca06f4 |
| SCIP notification number (Poland) | aa883e1e-fb83-49e8-86d6-2572f9b5b753 | SCIP notification number (Romania) | 23df783c-956c-4b56-8e9b-063cdc781c28 |
| SCIP notification number (Sweden) | ef68f64e-d57c-43ff-83ce-71563fcd1503 |
Specifications may be subject to change without notice
