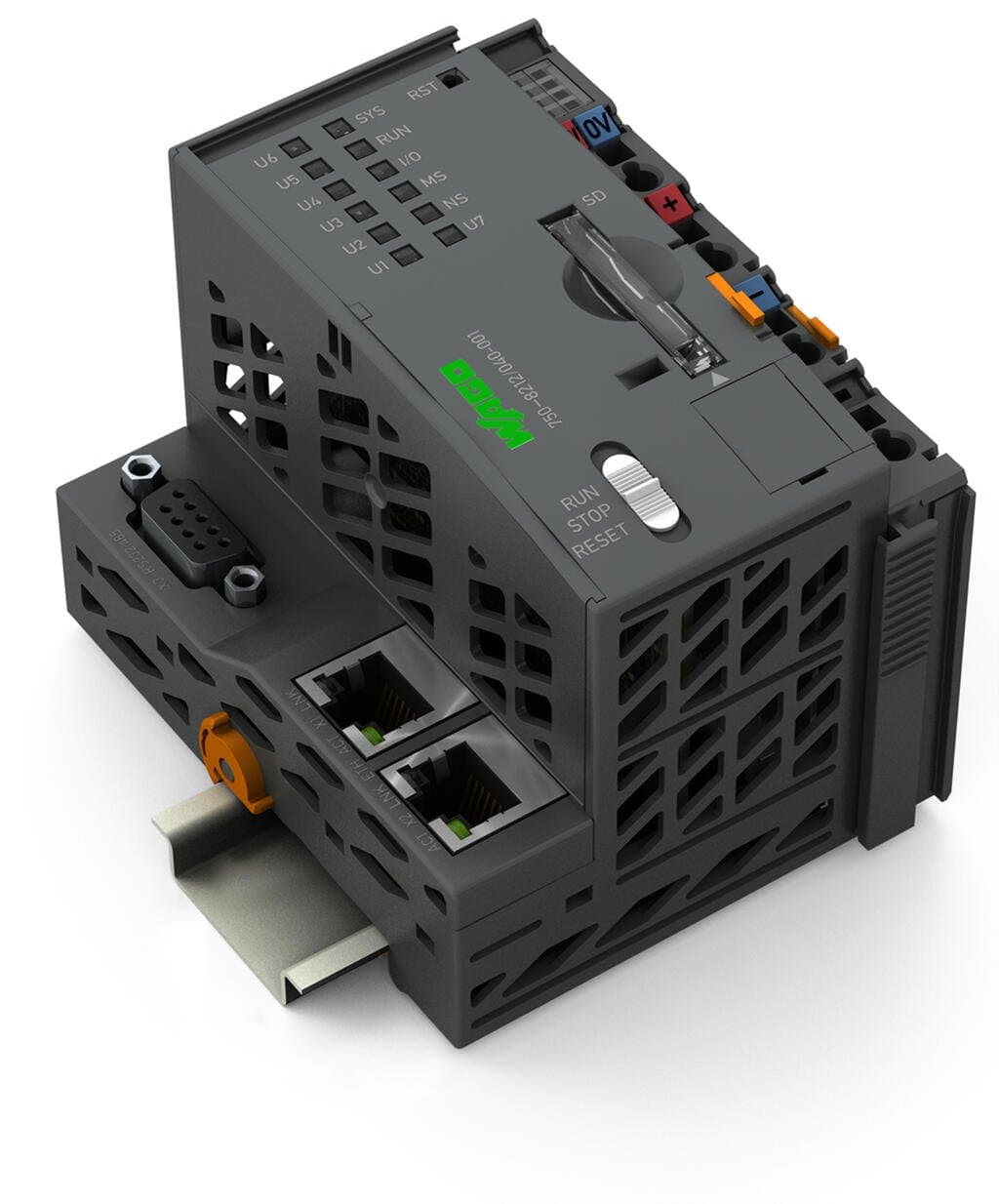

Product Model
750-8212/040-001
Key Features
- 1High-Performance Processor: Equipped with a 1GHz ARM Cortex-A8 processor for fast operating speeds.
- 2Versatile Communication: Supports Modbus RTU, Modbus TCP, Ethernet/IP, EtherCAT, RS-232, RS-485, and more.
- 3Extended Temperature Range: Operates in ambient temperatures from 0°C to +55°C.
- 4Compact Design: DIN-35 rail mounting with a width of 78.6mm, perfect for space-constrained applications.
- 5Enhanced Security: Includes high cybersecurity standards (SSL, SSH, OpenVPN, and firewall) for secure operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Communications | Modbus TCP master/slave | ETHERNET protocols | DHCP |
| Telecontrol protocols | IEC 60870 | Visualization | Web-Visu |
| Operating system | Real-time Linux (with PREEMPT_RT patch) | CPU | Cortex A8; 1 GHz |
| Programming languages per IEC 61131-3 | Instruction List (IL) | Programming environment | CODESYS V3.5, Firmware Release 23 or higher |
| Configuration options | CODESYS V3 | Transmission rate | ETHERNET:?10/100?Mbit/s |
| Transmission medium (communication/fieldbus) | ETHERNET:?Twisted Pair S-UTP; 100?Ω; Cat.?5; 100?m maximum cable length | Main memory (RAM) | 512MB |
| Internal memory (flash) | 4096MB | Non-volatile hardware memory | 128Kbytes |
| Program memory | CODESYS V2:?16?MB;?CODESYS V3:?32?MB | Data memory | CODESYS V2:?64?MB;?CODESYS V3:?128?MB |
| Non-volatile software memory | 128.Kbytes | Type of memory card | SD card |
| Memory card slot | Push-push mechanism; Cover lid (sealable) | Number of modules per node (max.) | 64 |
| Number of modules without a bus extension (max.) | 64 | Input and output process image (internal) max. | 1000?words/1000?words |
| Input and output process image (Modbus?) max. | CODESYS V2: 1000?words/1000?words; CODESYS V3: 32000?words/32000?words | Indicators | LED (SYS, RUN, I/O, U1 … U7) red/green/orange: Status of system, program, local data bus, status programmable by user (can be used via CODESYS library); LED (A, B) green: Status of system power supply, field supply |
| Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) | Supply voltage (system) | 24?VDC;?via pluggable connector (CAGE CLAMP? connection); Derating must be observed! |
| Input current (typ.) at nominal load (24?V) | 550mA | Total current (system supply) | 1,700mA |
| Supply voltage (field) | 24?VDC;?Power supply via pluggable connector (CAGE CLAMP? connection); Transmission via power jumper contacts; Derating must be observed! | Current carrying capacity (power jumper contacts) | 10A |
| Number of outgoing power jumper contacts | 2 | Rated surge voltage | 1?kV |
| Connection technology: communication/fieldbus | Modbus (TCP, UDP):?2 x RJ-45;?Modbus RTU:?1 x D-sub 9 socket;?RS-232 serial interface:?1 x D-sub 9 socket;?RS-485 interface:?1 x D-sub 9 socket;?Telecontrol protocol IEC 60870-5-101/-103:?1 x D-sub 9 socket;?Telecontrol protocol IEC 60870-5-104:?1 x RJ-45;?Telecontrol protocol IEC 61850:?1 x RJ-45;?Telecontrol protocol DNP3:?1 x RJ-45 or D-sub 9 socket | Connection technology: system supply | 2 x CAGE CLAMP? |
| Connection technology: field supply | 4 x CAGE CLAMP? | Connection type 1 | System/field supply |
| Solid conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.25 … 2.5?mm2?/ 24 … 14?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection technology: device configuration | 1 x Male connector; 4-pole |
| Width | 78.6?mm?/ 3.094?inches | Height | 100?mm?/ 3.937?inches |
| Depth | 71.9?mm?/ 2.831?inches | Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches |
| Weight | 212.7g | Housing material | Polycarbonate; polyamide 6.6 |
| Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | Without temperature derating: 0 … 2000?m; with temperature derating: 2000 … 5000?m (0.5?K/100?m); 5000?m (max.) |
| Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
| Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom | Mounting type | DIN-35 rail |
| Vibration resistance | Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | Per IEC 60068-2-27 (15g/11?ms/half-sine/1,000 shocks; 25g/6?ms/1,000 shocks), EN 50155, EN 61373 |
| EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Fire load | 2.762MJ |
| Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
| ETIM 9.0 | EC000236 | ETIM 8.0 | EC000236 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4066966208320 | Customs tariff number | 85371091990 |
| CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 06ab47dc-2f4f-4356-9094-9653b59b105e | SCIP notification number (Belgium) | 309d70b5-2953-4af3-811b-fbfb40d4ed56 |
| SCIP notification number (Bulgaria) | 7094c538-b37b-41e3-905f-d9a03e1516f6 | SCIP notification number (Czech Republic) | 77380389-b037-4140-bd62-59b5d189fa33 |
| SCIP notification number (Denmark) | d658af31-1775-42d5-bb4c-9a40b215c891 | SCIP notification number (Finland) | 83289b0f-fa7a-4d00-a26b-251347da81d9 |
| SCIP notification number (France) | dee2b83c-753a-479d-874c-ad85c8a95fc2 | SCIP notification number (Germany) | 47f891a8-c6f4-4cb4-ad26-ff21d802f01a |
| SCIP notification number (Hungary) | e25c3901-354e-495d-9a44-ef3ade83806f | SCIP notification number (Italy) | 19370aa9-0f55-40ae-bc92-2aa4aae700da |
| SCIP notification number (Netherlands) | 369c080f-0b71-4469-a3b4-1dcda771dd3d | SCIP notification number (Poland) | df55abcf-6ed0-477f-831b-6ba1bcab2121 |
| SCIP notification number (Romania) | b36c37cf-9886-4bce-b9fe-ffef7d3ed898 | SCIP notification number (Sweden) | 152b9b66-6890-4b31-ade5-e0e71f725844 |
Specifications may be subject to change without notice
