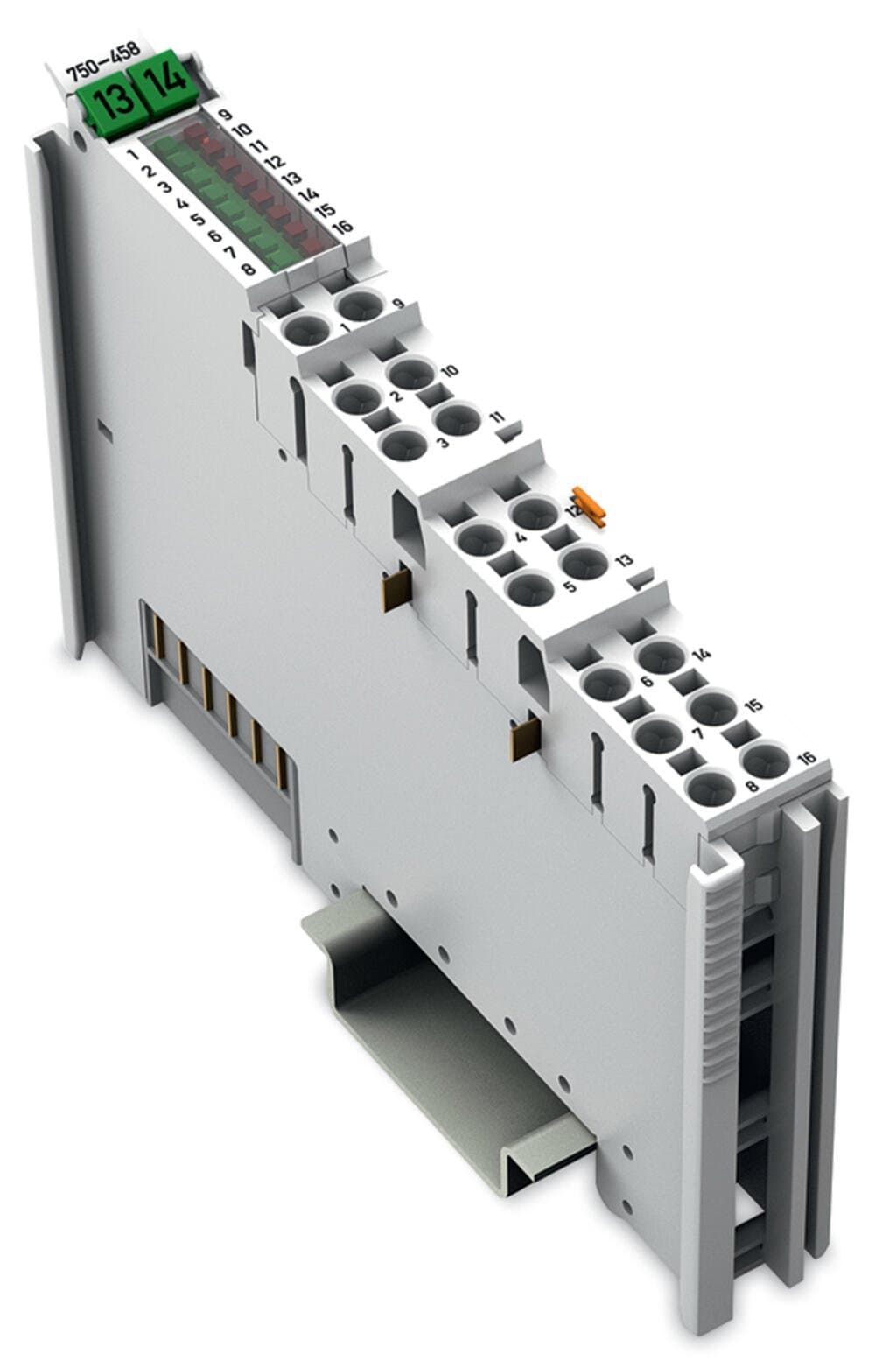

Product Model
750-458
Key Features
- 1High Integration Density: Accommodates up to 16 channels in a compact 12 mm housing.
- 2Fieldbus Independence: Supports numerous fieldbus systems and ETHERNET standards.
- 3Easy Installation: Tool-free installation with a modular, DIN-rail-mount design.
- 4Reliable Connections: CAGE CLAMP spring pressure connections ensure superior reliability.
- 5Versatile Configuration: Digital and analog I/O modules can be freely mixed in the same node.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of analog inputs | 8 | Number of Channels | 8 |
| Signal type | Thermocouple | Signal type (configurable) | yes |
| Sensor connection | 8 x (2-wire) | Data width | 8 x 16-bit data; 8 x 8-bit control/status (optional) |
| Resolution (over entire range) | 0.1?°C | Conversion time (typ. ≤) | 100ms |
| Measurement error (25 °C) | Without cold junction compensation: ≤?±1?K (type E, N, K, T, J, C); ≤?±2?K (type S, R); ≤?±3?K (type B); Cold-junction compensation measurement error: ≤?±4?K | Temperature error max. (upper-range value) ≤± | 0.05%/K |
| Sensor types | Thermocouple K; Configurable: J, B, E, N, R, S, T, U, C; Voltage sensor: ±30 mV, ±60 mV, ±120 mV, ±240 mV | Temperature range | Sensor-specific |
| Cold junction compensation | internal and external | Configuration options | WAGO-I/O-CHECK |
| Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 100mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
| Indicators | LED (1-8) green: Status TC 1 … TC 8; LED (9-16) red: Error TC 1 … TC 8 | Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 16 x Push-in CAGE CLAMP? |
| Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
| Fine-stranded conductor | 0.25 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
| Depth | 69?mm?/ 2.717?inches | Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches |
| Mounting type | DIN-35 rail | Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.851MJ | Weight | 63g |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
| Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-1; EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
| ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143350372 |
| Customs tariff number | 8538901000 | CAS-No. | 12060-00-3 |
| REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | 97d7ff78-46f1-4056-8dd2-60c498336e65 |
| SCIP notification number (Belgium) | 9a4d3221-1995-4de2-8787-cb2633bf2bf3 | SCIP notification number (Bulgaria) | ddec7740-3867-48a1-a756-dc9d74bb5ce3 |
| SCIP notification number (Czech Republic) | afcdd371-5593-4677-8aa3-3abda0fadd63 | SCIP notification number (Denmark) | 63b9f664-a59b-4017-b8a8-cde93e28a0e8 |
| SCIP notification number (Finland) | d583aa06-8ccf-40bc-9cd9-fa38372b46db | SCIP notification number (France) | 627f8c2d-b9c9-4e8a-b5e8-d69a498074a1 |
| SCIP notification number (Germany) | bb38c92f-f788-4c3f-a8ee-4c32288228e7 | SCIP notification number (Hungary) | 767dcaa2-031d-49c3-87f4-b96e893e7852 |
| SCIP notification number (Italy) | 85c5fca1-400f-44da-b489-03d5f7158f58 | SCIP notification number (Netherlands) | 9e6d10a7-fa20-44e8-b489-f50074e29a1e |
| SCIP notification number (Poland) | 9c9fbd57-4ef5-46d2-a9b7-28192953ebbd | SCIP notification number (Romania) | 14d3eeb9-d77a-47d1-9cae-031031d4a532 |
| SCIP notification number (Sweden) | d33954a3-788c-4cf7-9af8-8d61fcdce0f7 |
Specifications may be subject to change without notice
