Product Model

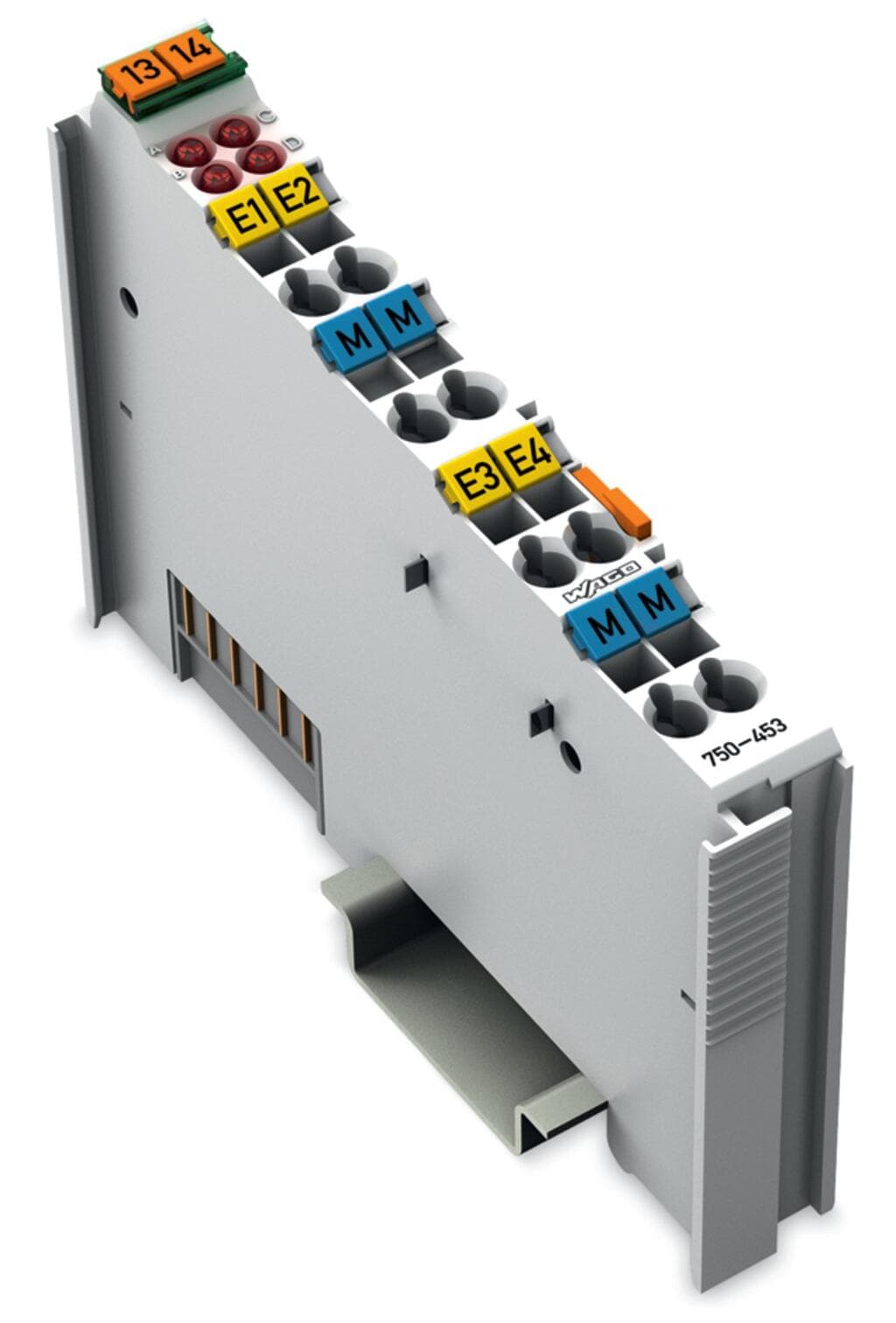

750-453
Key Features
- 112-bit resolution for precise signal measurement.
- 2Mounts on DIN-35 rail for straightforward integration.
- 38 x CAGE CLAMP connections ensure secure wiring.
- 4Operates in ambient temperatures from 0°C to +55°C.
- 5IP20 protection rating for robust performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of analog inputs | 4 | Number of Channels | 4 |
| Signal type | Current | Signal type (current) | 0 … 20?mADC |
| Sensor connection | 4 x (2-wire) | Input voltage (max.) | 32?V |
| Signal characteristics | Single-ended | Resolution [bit] | 12bits |
| Input resistance (max.) | 100Ω | Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Conversion time (typ. ≤) | 10ms | Measurement error, reference temperature | 25°C |
| Measurement error, deviation max (upper-range value) ≤± | 0.1% | Temperature error max. (upper-range value) ≤± | 0.01%/K |
| Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 65mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
| Indicators | LED (A-D) red: Error AI 1 … AI 4 | Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 | Current carrying capacity (power jumper contacts) | 10A |
| Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
| Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
| Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
| Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.289MJ | Weight | 51.2g |
| Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
| Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
| eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454481902 | Customs tariff number | 8538901000 |
| CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | a01d8c65-9e17-440f-942c-cf41ac452f28 | SCIP notification number (Belgium) | b4bd022d-b953-4409-b1cd-fa31095b6ad8 |
| SCIP notification number (Bulgaria) | bddc24c3-e3e4-42d8-b1eb-bb53a97e3a45 | SCIP notification number (Czech Republic) | 3b25e7ec-cd2b-464e-a889-13643a954432 |
| SCIP notification number (Denmark) | f159e111-b749-41b6-b1f8-587375ece41d | SCIP notification number (Finland) | 08027ab9-be43-4066-b846-7da96f327aa3 |
| SCIP notification number (France) | 6aee7333-9f7a-4645-9adc-716e7ce02bf4 | SCIP notification number (Germany) | f5d4a292-7bc1-4c18-a2d0-ad7d421f0bfb |
| SCIP notification number (Hungary) | 4c7e26e4-62a4-4bdc-8c4f-6db98b7eb6d3 | SCIP notification number (Italy) | 0288fcc9-08be-4fa2-a264-6f468c1dceb3 |
| SCIP notification number (Netherlands) | 453442b1-c1f8-4a0b-8047-bdd797ed87db | SCIP notification number (Poland) | f3842347-4f18-47ea-a298-4c1a1588efd3 |
| SCIP notification number (Romania) | 46a56ff0-03e8-410d-8e57-737d1bf26941 | SCIP notification number (Sweden) | 003615e9-7a51-467e-aee3-c1be3356348c |
Specifications may be subject to change without notice
