Product Model

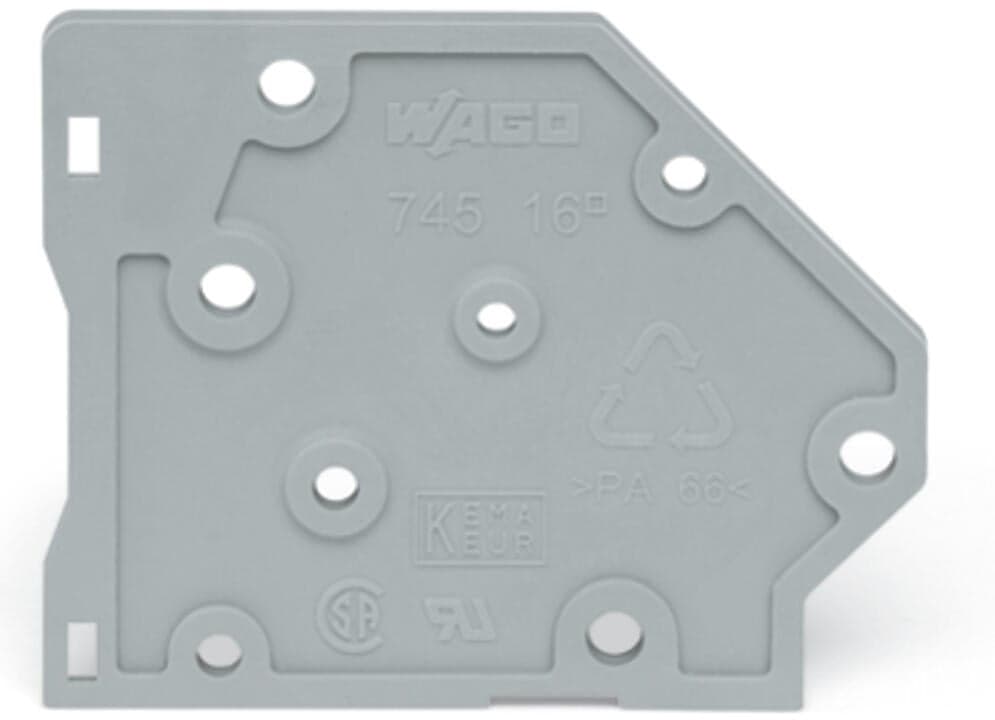

745-500
Key Features
- 1The WAGO 745-500 features the renowned CAGE CLAMP connection, ensuring reliable and damage-free wire connections.
- 2Designed to handle up to 800V, these terminal blocks are ideal for high-voltage applications.
- 3Built to withstand shock, vibration, and pullout forces, ensuring long-lasting performance in harsh environments.
- 4Compact and user-friendly design makes installation straightforward, even in tight spaces.
- 5Meets rigorous standards including VDE 0609 and IEC 17B, ensuring safety and reliability in critical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.7?mm?/ 0.067?inches | Height | 27?mm?/ 1.063?inches |
| Depth | 33.4?mm?/ 1.315?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.035MJ |
| Weight | 1.2g | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 500?(100)?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4017332763677 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
