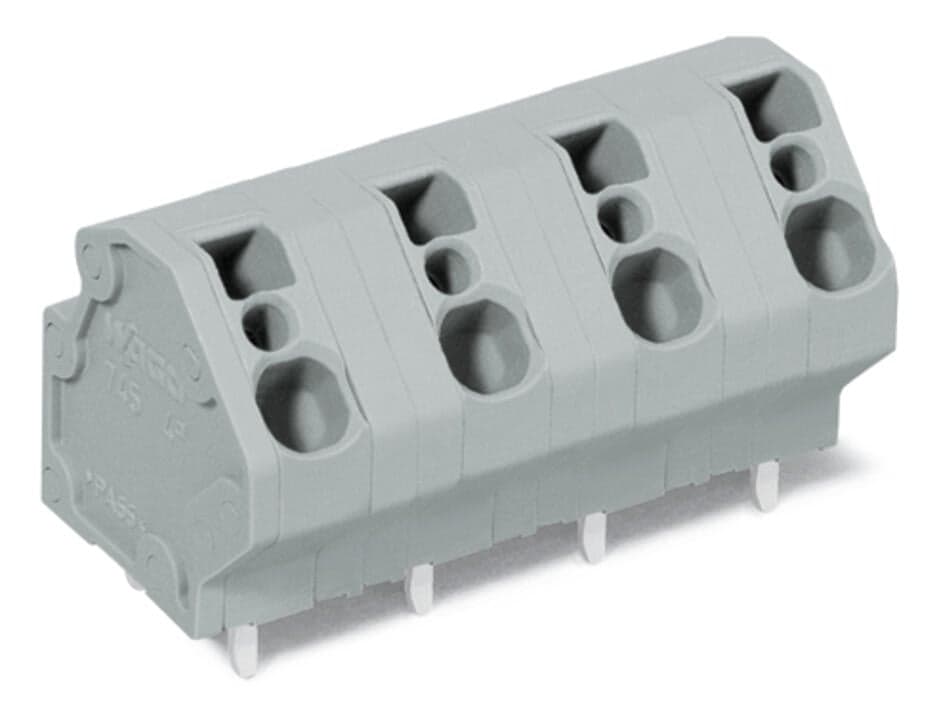

Product Model
745-3212
Key Features
- 1High-reliability connectors for mission-critical applications.
- 2Easy installation with minimal tools required.
- 3Durable design withstands harsh industrial environments.
- 4Compatible with various automation and control systems.
- 5Fast and secure data transmission for real-time monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 12 |
| Total number of potentials | 12 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 10?mm?/ 0.394?inches |
| Width | 116.5?mm?/ 4.587?inches | Height | 23?mm?/ 0.906?inches |
| Height from the surface | 19?mm?/ 0.748?inches | Depth | 19.4?mm?/ 0.764?inches |
| Solder pin length | 4mm | Solder pin dimensions | 0.8 x 1.2?mm |
| Drilled hole diameter with tolerance | 1.5(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.63MJ | Weight | 31.6g |
| Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 24?(12)?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4045454001063 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
| Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
| Rated current | 32A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 300V |
| Rated current UL (Use Group C) | 20A | Rated voltage UL (Use Group D) | 600V |
| Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 20A | Rated voltage CSA (Use Group C) | 300V |
| Rated current CSA (Use Group C) | 20A | Rated voltage CSA (Use Group D) | 600V |
| Rated current CSA (Use Group D) | 5A | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Conductor connection direction to PCB | 45° | Number of poles | 12 |
Specifications may be subject to change without notice
