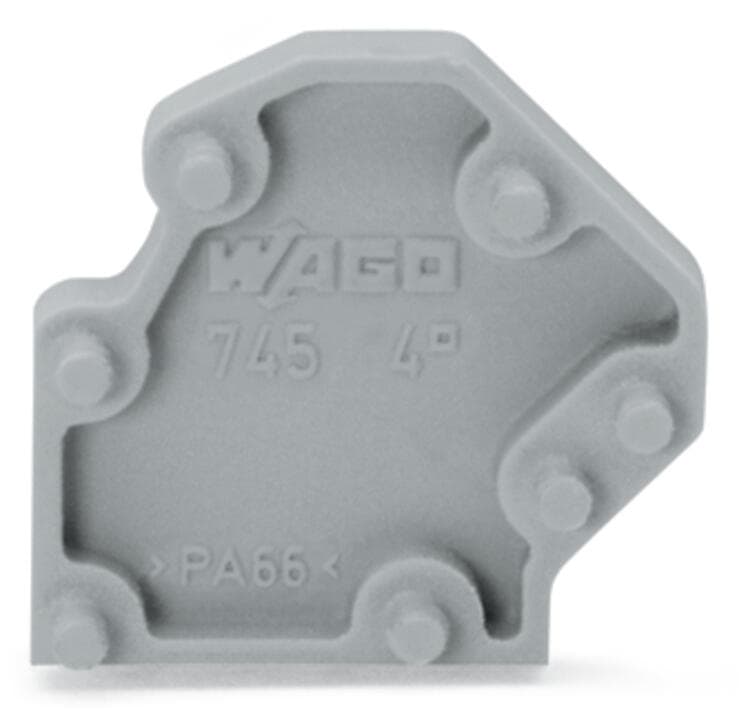

Product Model
745-3138
Key Features
- 1Extends pin spacing to 2.5 mm for efficient PCB terminal block arrangements.
- 2Made of durable gray material with a fire load of 0.014 MJ for safety.
- 3Snap-on mounting type for easy installation and secure fit.
- 4Weighs only 0.482 g, minimizing space while maintaining functionality.
- 5Compatible with various WAGO terminal block configurations and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 2.5?mm?/ 0.098?inches | Width | 2.5?mm?/ 0.098?inches |
| Height | 19?mm?/ 0.748?inches | Depth | 19.4?mm?/ 0.764?inches |
| Use | extends pin spacing | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Fire load | 0.014MJ | Weight | 0.5g |
| Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-44-04-92 |
| eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?(50)?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4045454153779 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
