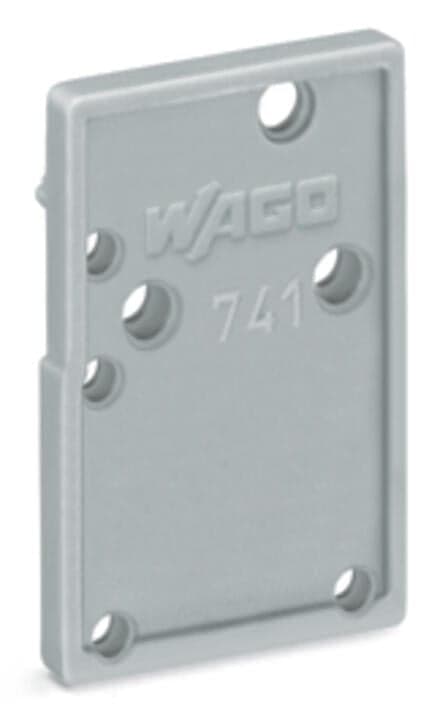

Product Model
741-100
Key Features
- 1Snap-fit type for easy installation
- 21.5 mm thick for robust construction
- 3Gray color for clear visibility
- 4Compliant with UL94 V0 flammability class
- 5Packaged in boxes of 100 for convenience
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.5?mm?/ 0.059?inches | Height | 18.5?mm?/ 0.728?inches |
| Depth | 12.5?mm?/ 0.492?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.011MJ |
| Weight | 0.3g | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-92 | eCl@ss 9.0 | 27-44-04-92 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1000?(100)?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4017332321334 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
