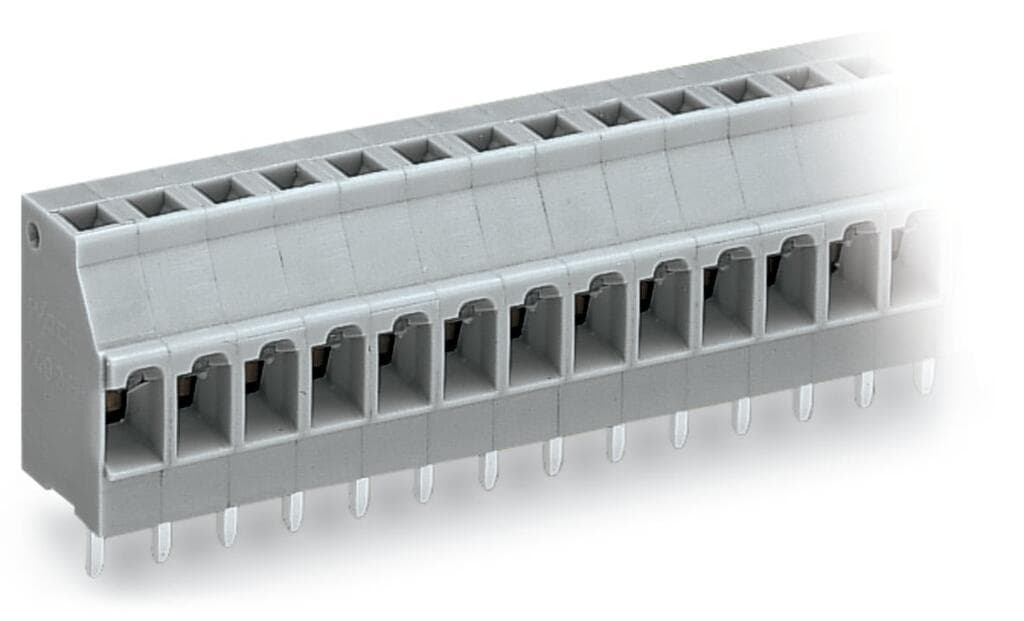

Product Model
740-102
Key Features
- 1Reliable connections with CAGE CLAMP technology for secure termination.
- 2Suitable for industrial and automation systems requiring high performance.
- 3Meets overvoltage category III and pollution degree 2 standards.
- 4Compatible with various EDA software for easy integration into PCB designs.
- 5Available in gray color with dimensions of 23.3 mm height and 11.1 mm depth.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 2 |
| Total number of potentials | 2 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5 mm / 0.197 inches |
| Width | 10 mm / 0.394 inches | Height | 23.3 mm / 0.917 inches |
| Height from the surface | 18.2 mm / 0.717 inches | Depth | 11.1 mm / 0.437 inches |
| Solder pin length | 5.1mm | Solder pin dimensions | 0.8 x 1 mm |
| Drilled hole diameter with tolerance | 1.3(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 1 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.04MJ | Weight | 2.8g |
| Limit temperature range | -60 … +105 °C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 460 (115) pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4055143260138 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 300V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 16A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Solid conductor | 0.08 … 2.5 mm2 / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 12 AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5 mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5 mm2 | Note (conductor cross-section) | 12 AWG: THHN, THWN |
| Strip length | 6 … 7 mm / 0.24 … 0.28 inches | Conductor connection direction to PCB | 0° |
| Number of poles | 2 |
Specifications may be subject to change without notice
