Product Model

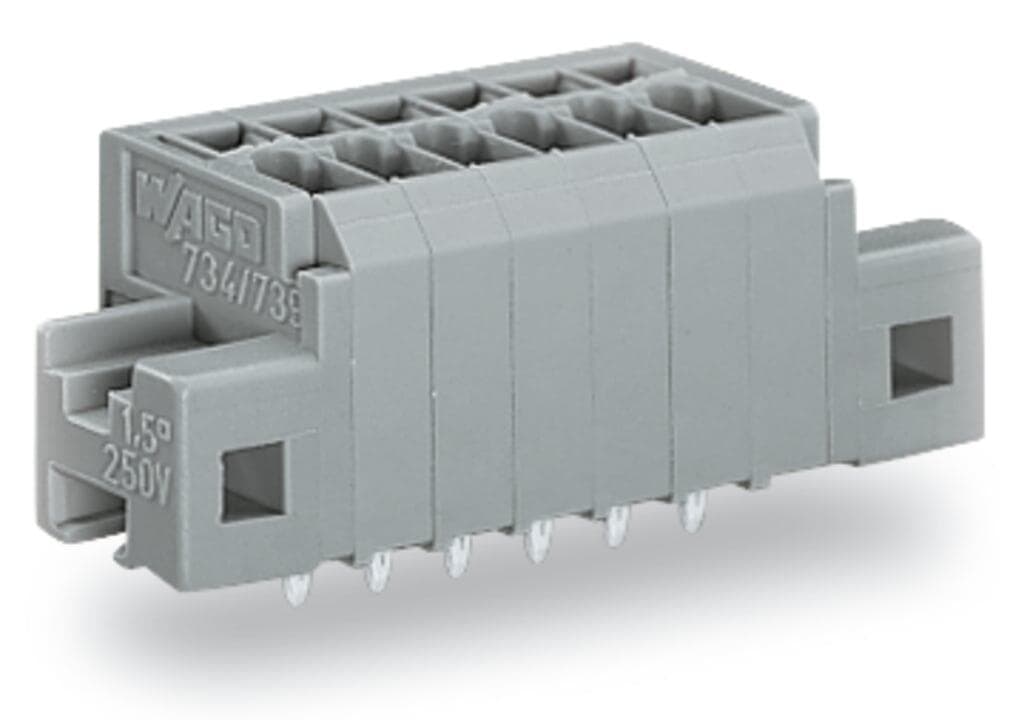

739-306/001-000
Key Features
- 1The WAGO 739-306/001-000 PCB terminal block offers a screwdriver-actuated CAGE CLAMP connection for secure and space-saving conductor entry.
- 2Designed with a clamping collar and 1.5 mm² conductor capacity, ensuring reliable connections in various applications.
- 3Vertical conductor entry and operating direction allow for compact positioning, ideal for space-constrained projects.
- 4Simple insertion of conductors parallel to screwdriver actuation makes installation quick and straightforward.
- 5Made from high-quality materials including polyamide insulation and chrome nickel spring steel clamping springs, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 6 |
| Total number of potentials | 6 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
| Width | 35.8?mm?/ 1.409?inches | Height | 15.7?mm?/ 0.618?inches |
| Height from the surface | 12.3?mm?/ 0.484?inches | Depth | 13.4?mm?/ 0.528?inches |
| Solder pin length | 3.4mm | Solder pin dimensions | 0.6 x 0.8?mm |
| Drilled hole diameter with tolerance | 1.1(+0.1)mm | Mounting type | Panel mounting |
| PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
| Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.182MJ |
| Weight | 4.8g | Limit temperature range | -60 … +105?°C |
| Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-44-04-01 |
| eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
| ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 120?(30)?pcs | Packaging type | box |
| Country of origin | PL | GTIN | 4017332750196 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
| Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
| Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
| Rated surge voltage (II/2) | 2.5kV | Rated current | 17.5A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Solid conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 1?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 |
| Note (conductor cross-section) | 14 AWG: THHN, THWN | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
| Conductor connection direction to PCB | 90° | Number of poles | 6 |
Specifications may be subject to change without notice
