Product Model

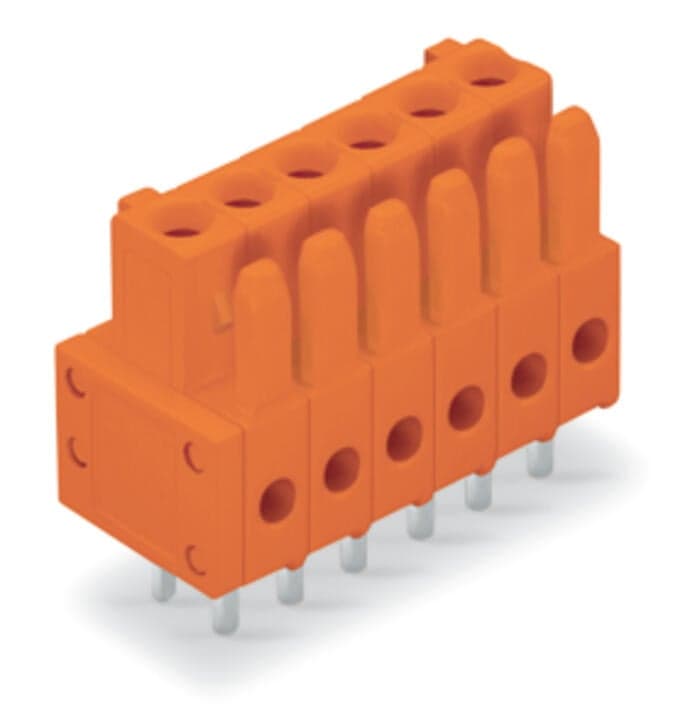

734-505
Key Features
- 1Reliable Connectivity: Ensures secure and stable connections in various applications.
- 2High-Quality Design: 0.9 x 0.9 mm solder pins for efficient PCB mounting.
- 3Mismating Protection: 100% protected against mismating for consistent performance.
- 4Easy Integration: Compatible with a range of systems and easy to integrate.
- 5Durable Construction: Built for durability and long-lasting performance in electrical and automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Clamping units | 5 | Total number of potentials | 5 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 3.81?mm?/ 0.15?inches | Width | 20.55?mm?/ 0.809?inches |
| Height | 18.5?mm?/ 0.728?inches | Height from the surface | 14.7?mm?/ 0.579?inches |
| Depth | 10.5?mm?/ 0.413?inches | Solder pin length | 3.8mm |
| Solder pin dimensions | 0.9 x 0.9?mm | Drilled hole diameter with tolerance | 1.4(+0.1)mm |
| Variable coding | Yes | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Female header | Connector (connection type) | for PCB |
| Mismating protection | Yes | Plugging without loss of pin spacing | No |
| Mating direction to the PCB | 90° | Locking of plug-in connection | none |
| PCB contact | THT | Solder pin arrangement | over the entire female connector (in-line) |
| Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Contact material | Copper alloy | Contact plating | Tin |
| Fire load | 0.036MJ | Weight | 2.8g |
| Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
| Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-44-04-02 |
| eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
| ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454120276 |
| Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
| Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
| Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
| Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
| Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
| Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
| Number of poles | 5 |
