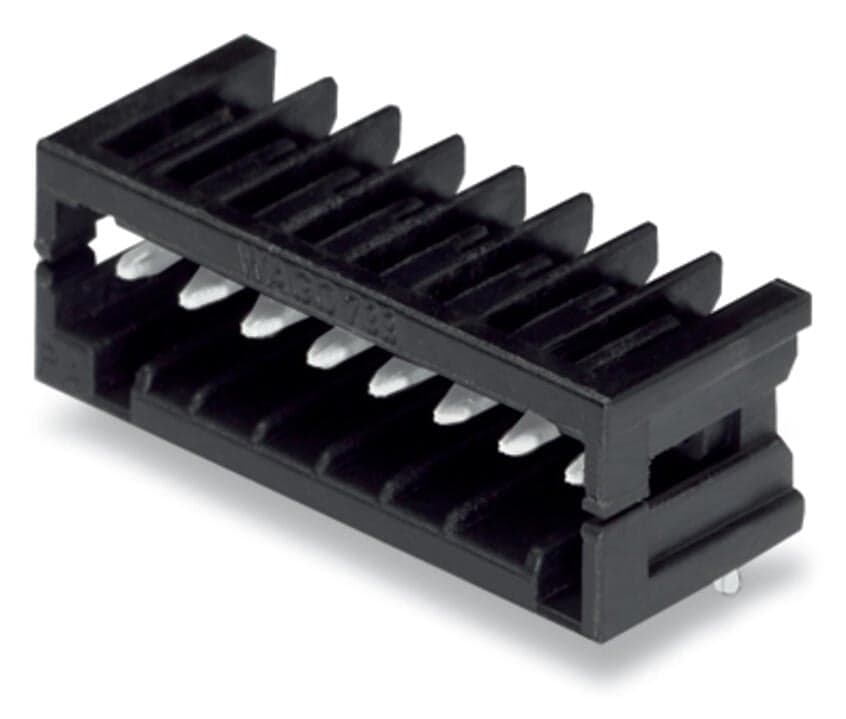

Product Model
733-364/105-604
Key Features
- 1Universal connection for all conductor types
- 2Easy cable pre-assembly and on-unit wiring
- 3Strain relief plates for factory and field assembly
- 4100% protected against mismating
- 5Coding option available for customization
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 4 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 2.5?mm?/ 0.098?inches |
| Width | 12.5?mm?/ 0.492?inches | Height | 10.2?mm?/ 0.402?inches |
| Height from the surface | 7.8?mm?/ 0.307?inches | Depth | 8.9?mm?/ 0.35?inches |
| Solder pin length | 2.4mm | Solder pin dimensions | 0.8 x 0.8?mm |
| Plated through-hole diameter (THR) | 1.2(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
| Connector (connection type) | for PCB | Mismating protection | Yes |
| Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
| PCB contact | THR | Solder pin arrangement | over the entire male connector (in-line) |
| Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
| Color | black | Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.014MJ | Weight | 0.8g |
| MSL per J-STD 020D | 1 | Limit temperature range | -60 … +100?°C |
| Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4045454676209 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 80V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 6A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 150V |
| Rated current UL (Use Group B) | 4A | Rated voltage CSA (Use Group B) | 150V |
| Rated current CSA (Use Group B) | 4A | Number of poles | 4 |
