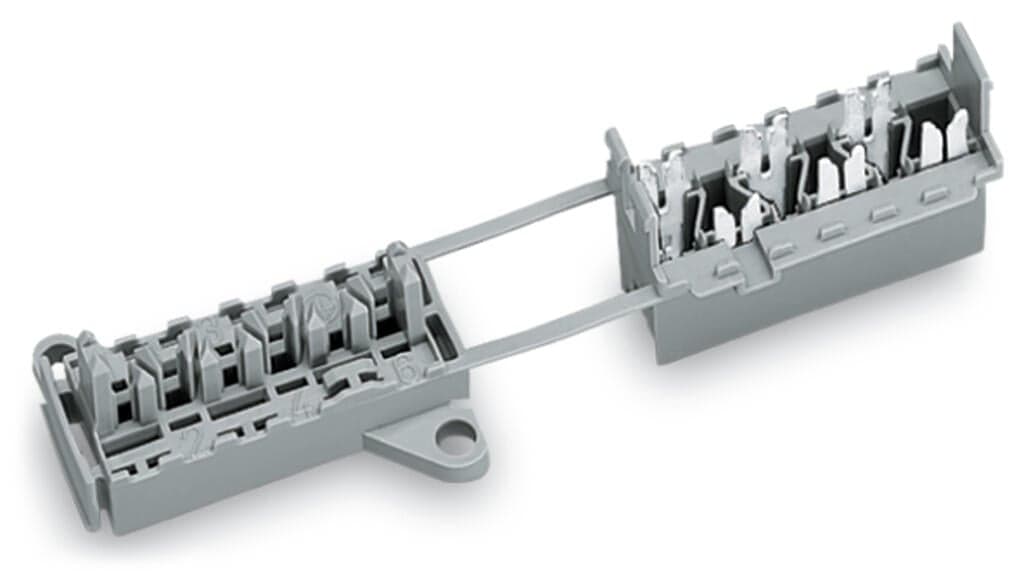

Product Model
730-126
Key Features
- 1High-quality construction with polyamide (PA66) housing and chrome-nickel spring steel clamping spring.
- 2Easy to use with IDC connections for tapping individual conductors without stripping.
- 3Compatible with other WAGO products, ensuring seamless integration in industrial settings.
- 4Three-pole sockets automatically cut "live" conductors, enhancing safety in applications like elevator shafts.
- 5Meets stringent electrical and environmental standards, including UL 1059 and IEC/EN 60664-1 ratings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Total number of potentials | 6 | Number of connection types | 1 |
| Number of levels | 1 | Width | 43?mm?/ 1.693?inches |
| Height | 16?mm | Depth | 30?mm?/ 1.181?inches |
| Variable coding | No | Mounting type | Mounting flange |
| Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
| Mismating protection | No | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Brass |
| Contact plating | Tin | Fire load | 0.31MJ |
| Weight | 11.9g | Limit temperature range | -60 … +85?°C |
| Product Group | 13 (Misc. Multi Conn. System) | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918253468 |
| Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated voltage (III/2) | 630V |
| Rated surge voltage (III/2) | 6kV | Nominal voltage (II/2) | 1000V |
| Rated surge voltage (II/2) | 6kV | Rated current | 10A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 10A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 10A |
| Connection technology | IDC connection | Fine-stranded conductor | 0.75 … 1.5?mm2?/ 18 … 16?AWG |
| Number of poles | 6 |
Specifications may be subject to change without notice
